1. Using the file transfer method of your choice, transfer the downloaded Chariot MQTT Server zip file to the Windows server and unzip.

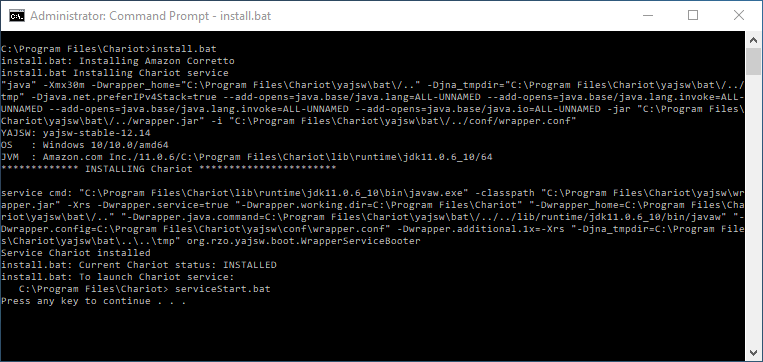

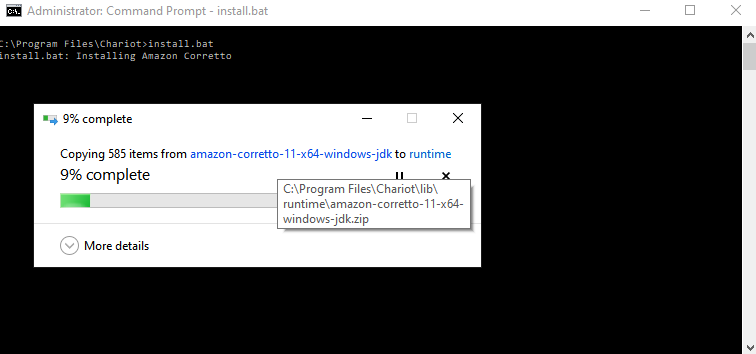

2. Install the Chariot service. From a command prompt, run the Chariot service install script in the directory where the files were unzipped.

   Code Block
   install.bat







3. The Chariot MQTT Server should now be installed in the Windows server and will run automatically when the server is booted.

Anchor
Starting Starting

Starting the Chariot MQTT Server

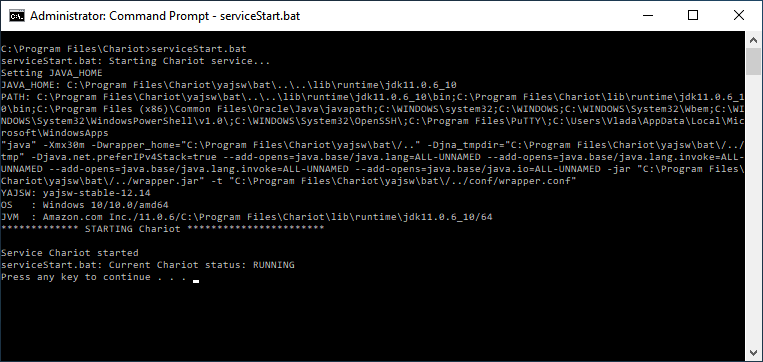

1. From a command prompt, run the Chariot service start script in the directory where the service was installed.

   Code Block
   serviceStart.bat






2. Verify the Chariot service is running. From a command prompt, run the Chariot service status script in the directory where the service was installed.


   Code Block
   status.bat

   The status returned will be: INSTALLED, NOT INSTALLED or RUNNING


   Additionally the Chariot MQTT Server Web UI can be accessed on port 8080.  Navigate to the server's URL in a browser and verify that the EULA page is shown.

Anchor
Stopping Stopping

Stopping the Chariot MQTT Server

1. From a command prompt, run the Chariot service stop script in the directory where the service was installed.

   Code Block
   serviceStop.bat




Anchor
Uninstalling Uninstalling

Uninstalling the Chariot MQTT Server

1. From a command prompt, run the Chariot service uninstall script in the directory where the service was installed.

   Code Block
   serviceUninstall.bat
