- Have two machines available to run Ignition Gateway and Ignition Edge MQTT
- Ignition Gateway can run on a laptop, in the cloud via an AWS EC2 instance or some other development computer
- Ignition Edge MQTT can run on one of many supported embedded edge of network gateways, a laptop or development computer, or also in a cloud service

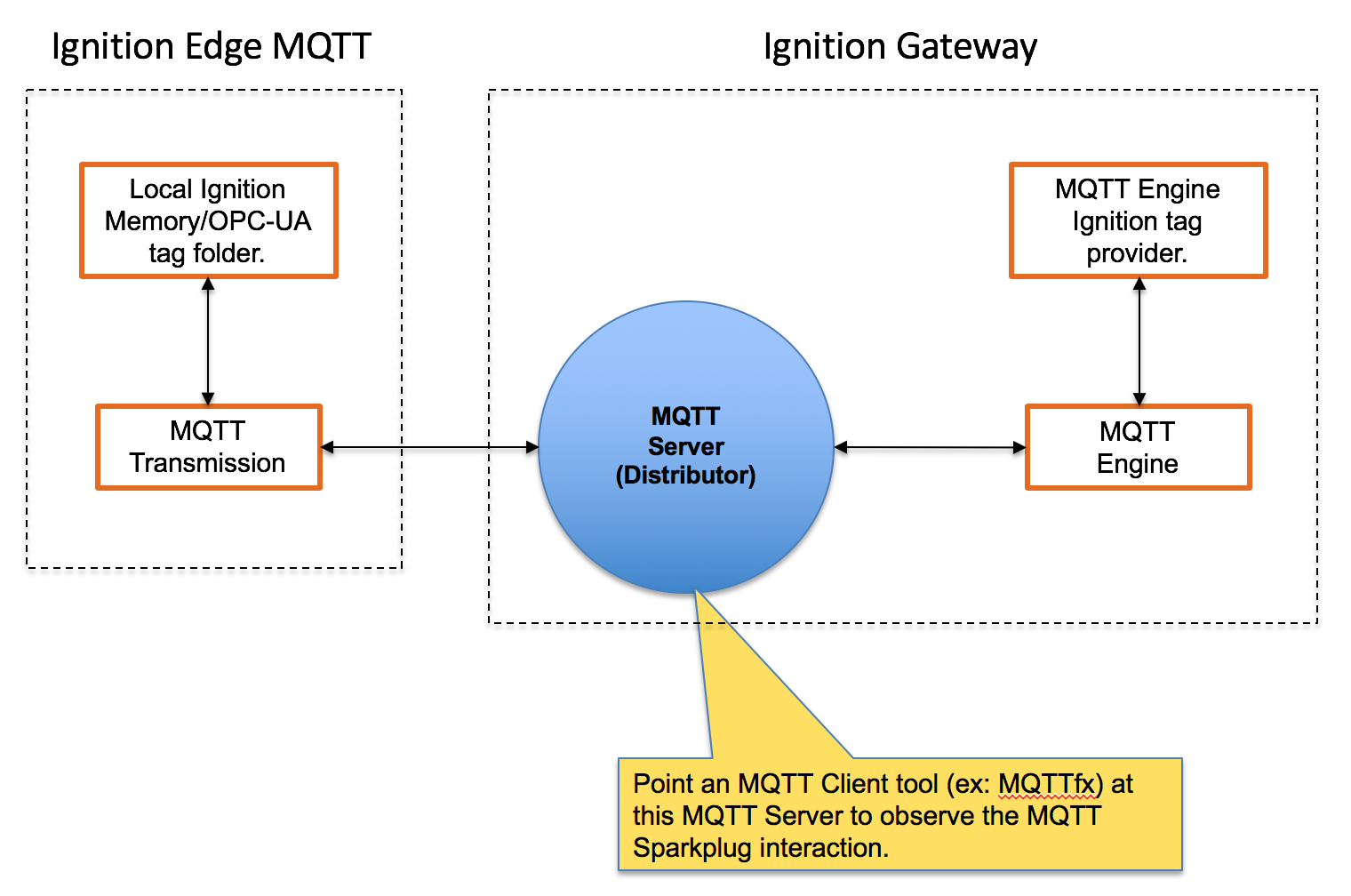

In conjunction with the Sparkplug specification, it is very useful to set up a working system that uses the MQTT Sparkplug specification in order to observe a simple, but fully functional system. This section of the tutorial will provide step by step instructions for installing and configuring Ignition Edge MQTT and an Ignition Gateway to show tags being published from Ignition Edge to the Ignition Gateway running MQTT Distributor and MQTT Engine.
- Central Ignition Gateway Installation
- MQTT Distributor – An MQTT Server that runs as an Ignition module.
- MQTT Engine – Engine is an MQTT Client that implements the Sparkplug specification and automatically creates Ignition tag structures for Edge Node and Device metadata and process variables.
- Ignition Edge MQTT
- MQTT Transmission – Transmission is an MQTT Client that implements the Sparkplug specification to bridge local Ignition tags (OPC-UA and Memory tags) and publish the resulting structure to an MQTT infrastructure.
- Additional Ignition Edge MQTT devices could (and normally would) be added to the architecture.
Upon completion of this tutorial you will have all of the required components to configure, deploy, and observe the Sparkplug MQTT specification in action.
Step 1: Download and Install the Central Ignition Gateway
Ignition is an Industrial Application Platform that can be used to create SCADA and HMI solutions. A fully functional Ignition system can be downloaded and run in trial mode. Using Ignition as a tool in this way, we can install the Sparkplug MQTT Modules and observe everything working.
Go to the Inductive Automation download page and download the desired Ignition installer for Windows, Linux or MacOS;
https://inductiveautomation.com/downloads/ignition. Take note of your user/password you create as you will need these credentials to load Modules and configure this device.
Once the Ignition installer has been downloaded, follow the instructions provided by Inductive Automation to install and start Ignition.
- Install on Windows: https://docs.inductiveautomation.com/display/DOC80/Windows+-+Install
- Install on Linux:https://docs.inductiveautomation.com/display/DOC80/Linux+-+Install
- Install on Mac: https://docs.inductiveautomation.com/display/DOC80/Mac+OS+X+-+Install
Important Note: For this test infrastructure, MQTT Distributor will be installed as an Ignition module. Remember to either turn off firewalls or at a minimum allow inbound connections to TCP/IP port #1883 and port #8883, as remote MQTT Clients will need to be able to establish a TCP/IP socket connection to these ports.
Step 2: Download and Install Ignition Edge MQTT
Ignition Edge MQTT is a new stripped down version of Ignition that is specifically designed for use as an Edge of Network device.
See the Ignition Edge installation guide here. Follow the sections for Ignition Edge MQTT and for your specific Operating System. Make sure this is being installed on a different machine than was used to install Ignition in step 1.
https://docs.inductiveautomation.com/display/DOC80/Installing+Edge. Take note of your user/password you create as you will need these credentials to load Modules and configure this device.
Step 3: Download the Cirrus Link MQTT Modules
Go to the Inductive Automation download page again and select the Strategic Partner (Third Party) modules Tab and use pull-down for the intended version. Find the Cirrus Link modules section and download the MQTT Distributor, MQTT Engine, MQTT Transmission modules.

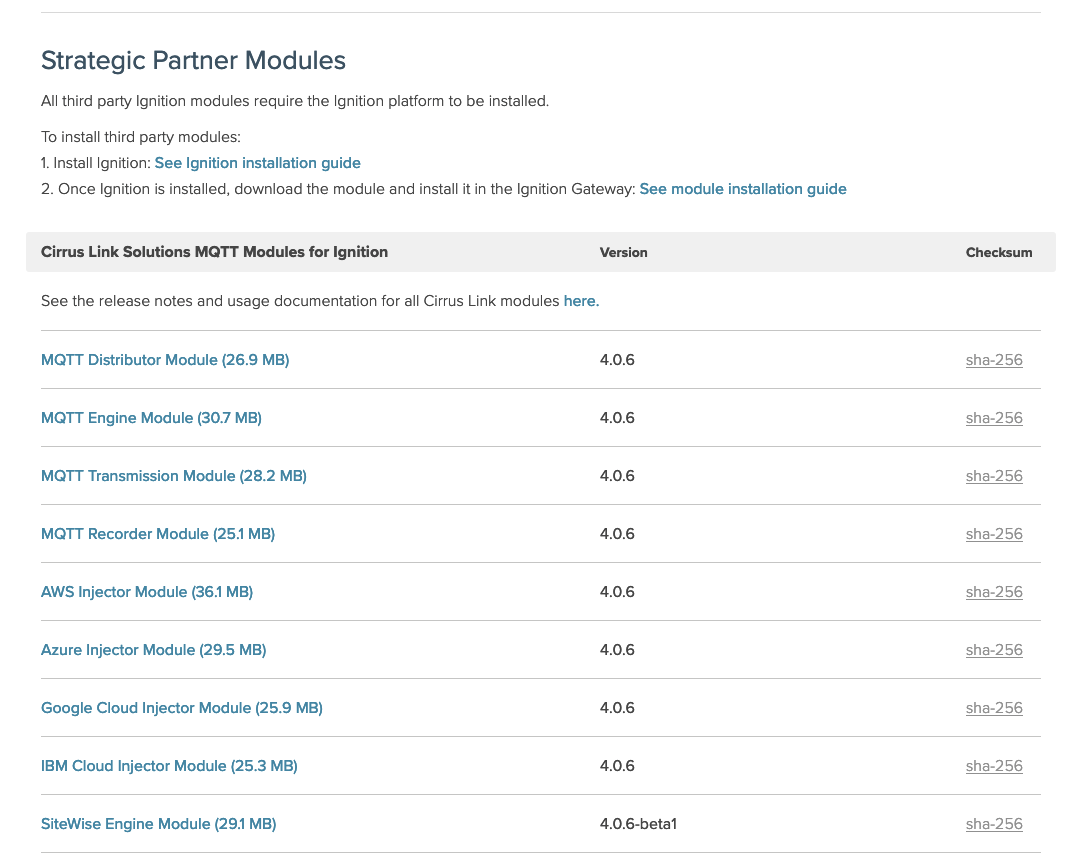

https://inductiveautomation.com/downloads/ignition. The download links should look similar to what is shown below but with updated versions.
- In Steps 4 & 5 you will:
- Install and configure MQTT Distributor and MQTT Engine Modules into the Central Ignition Gateway installed in step 1.
- Install and configure MQTT Transmission Module into Ignition Edge MQTT that was installed in step 2.
Step 4a: Install the MQTT Modules on the Central Ignition Gateway
Once you have Ignition installed and running, and the MQTT Distributor and MQTT Engine modules downloaded, browse to the Ignition Gateway console (e.g. http://localhost:8088 or http://<[CentralGateway_IPAddr]>:8088 ).

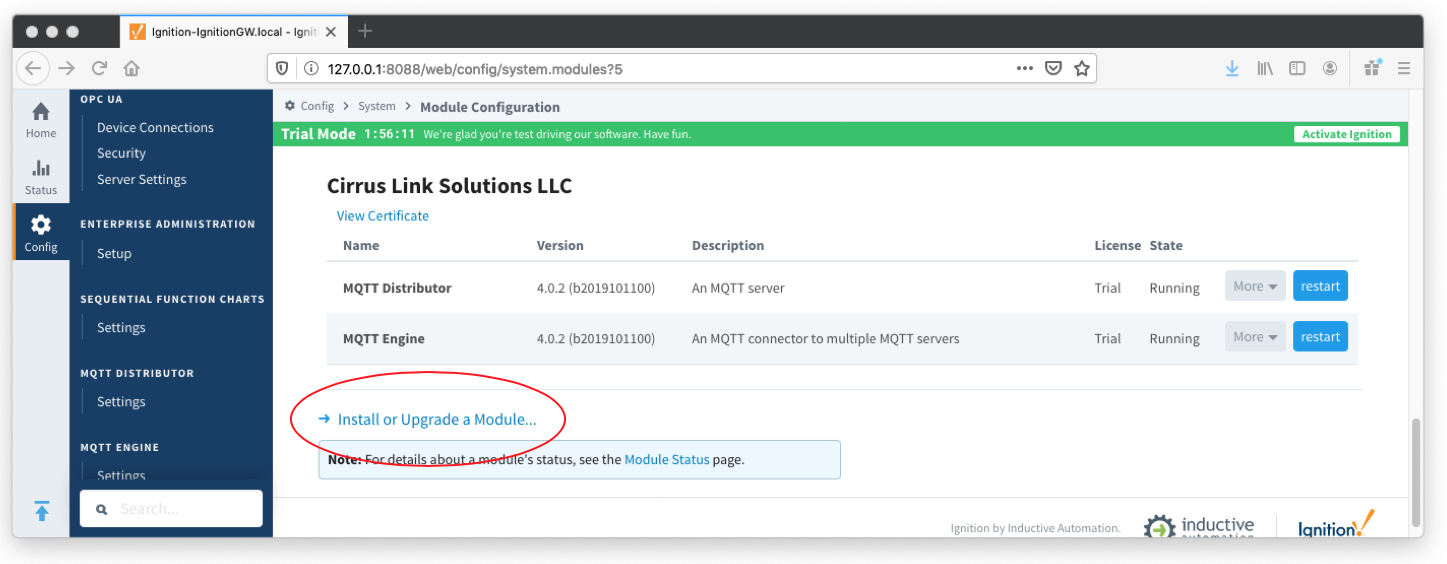

Log in to the Ignition Gateway installed in step 1 using your new credentials (username/password) just created during your installation. To the left of the side bar click on Configuration tab [ Home | Status | Config ] to configure your system. In the Side Bar, beneath the SYSTEM heading click on Modules to view or load Modules. Scroll to the bottom of the page and click on the "Install or Upgrade a Module..." text. When prompted, select the MQTT Distributor module from the file browser and install it. Do the same for the MQTT Engine module. When complete, the Ignition Gateway Web UI module section should look similar to what is shown below.
Step 4b: Configure the MQTT Modules on the Central Ignition Gateway
By default, MQTT Engine is already configured to point to an MQTT Server at tcp://localhost:1883. This means it will automatically connect to MQTT Distributor which is installed with it. There are some other configuration parameters that could optionally be set. The first is the 'Primary Host ID'. This is a setting that is highly recommended and should be set on both MQTT Engine and any MQTT Transmission instances that are reporting in as well. The ASCII string should match exactly on MQTT Engine and all MQTT Transmission instances. The option to 'Block Node Commands' and 'Block Device Commands' could be unchecked if you want to allow tag writes at MQTT Engine to result in tag writes on the MQTT Transmission instances (i.e. remote tag writes). Save the settings (SAVE-button at bottom of page) after making these changes.

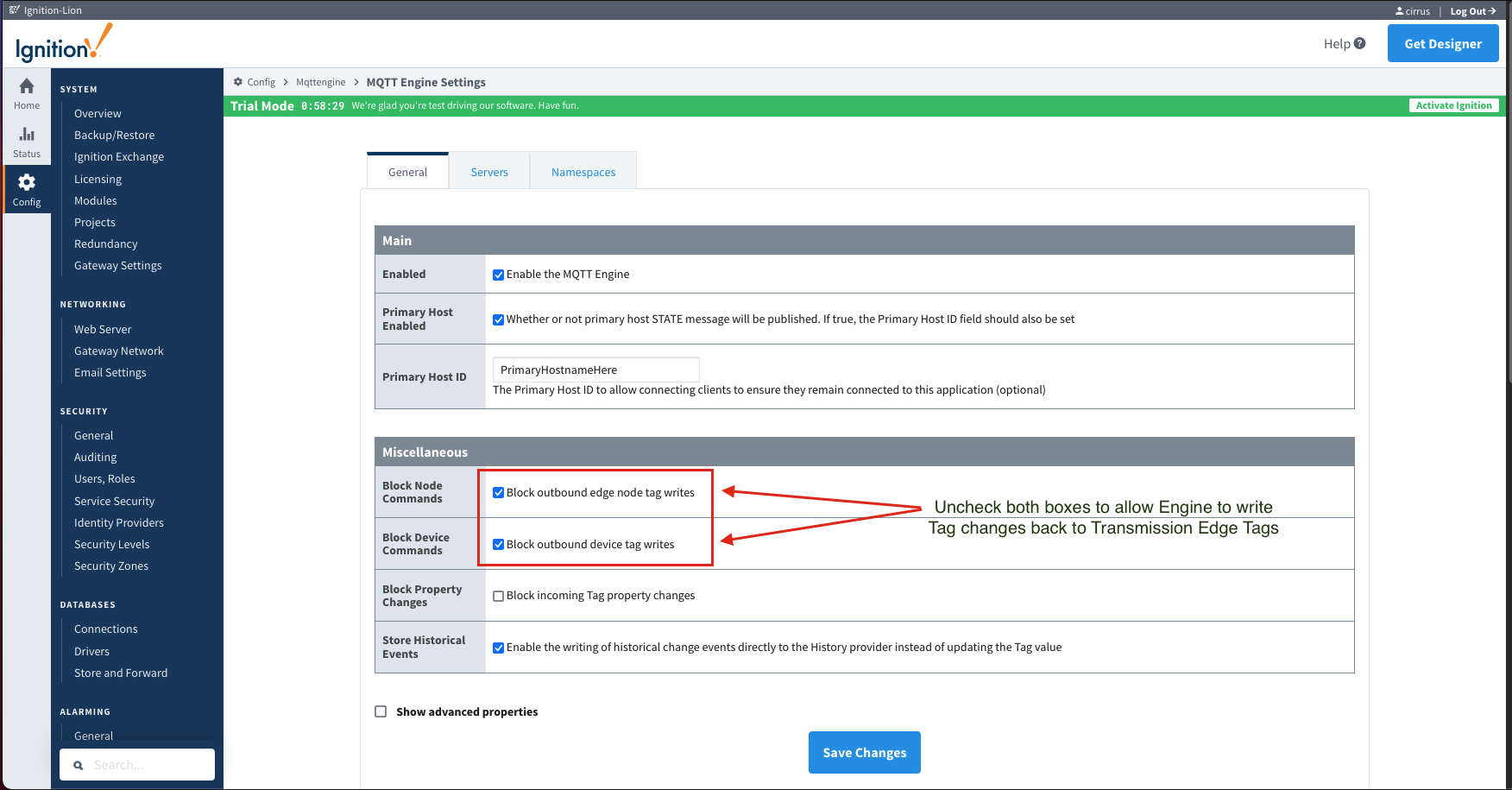

Example below showing MQTT Engine Settings and the Primary Host ID value (if used note the Host name and enter it in Transmission module configuration below in Step 5b.):

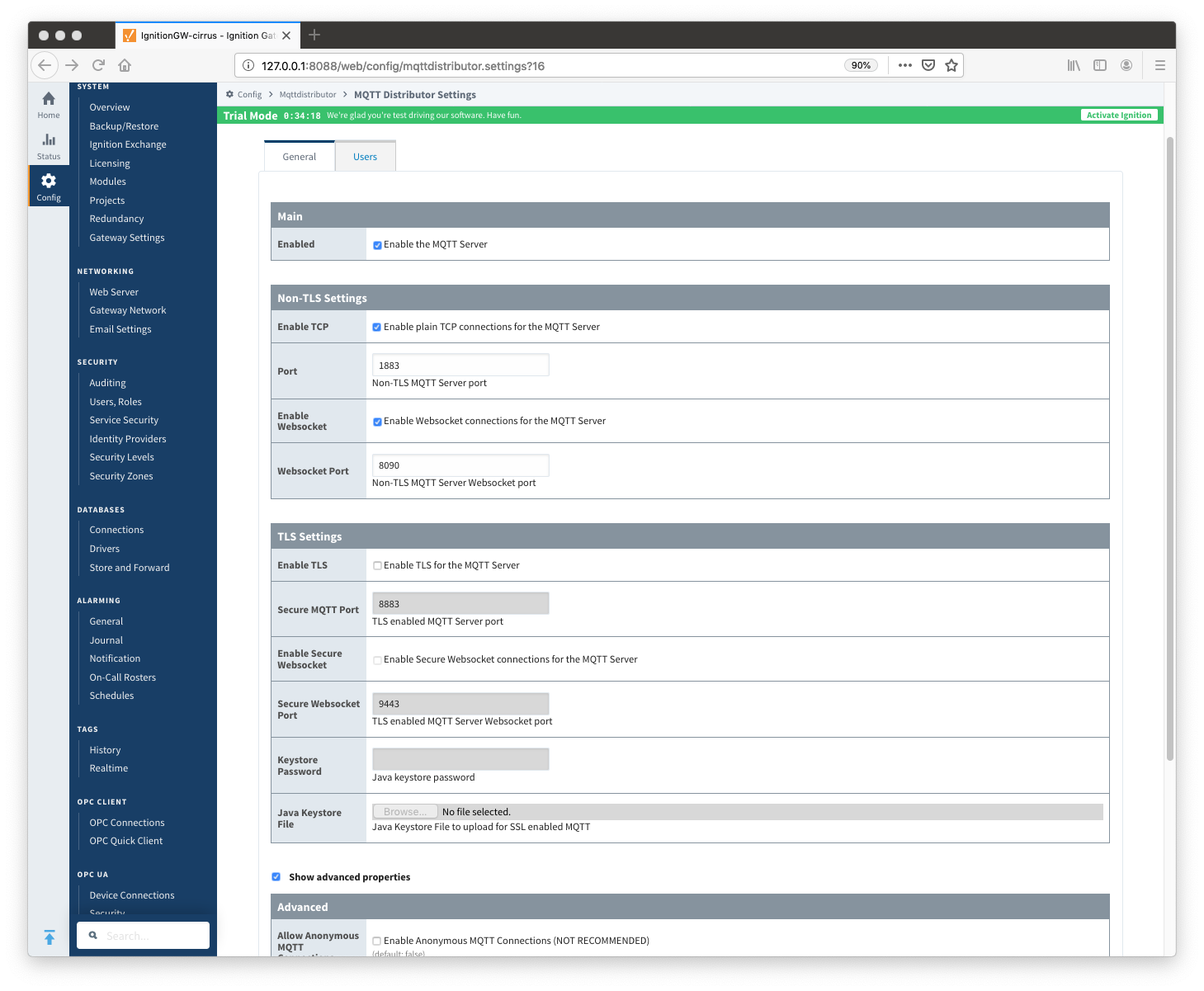

Example below showing default MQTT Distributor Settings:
Step 5a: Install the MQTT Transmission Module on your Ignition Edge Gateway
Now that you have Ignition Edge installed and running, and the MQTT Transmission module downloaded, browse to the Ignition Edge-Gateway console (e.g. http://localhost:8088 or http://<[Edge-Gateway_IPAddr]>:8088 ).

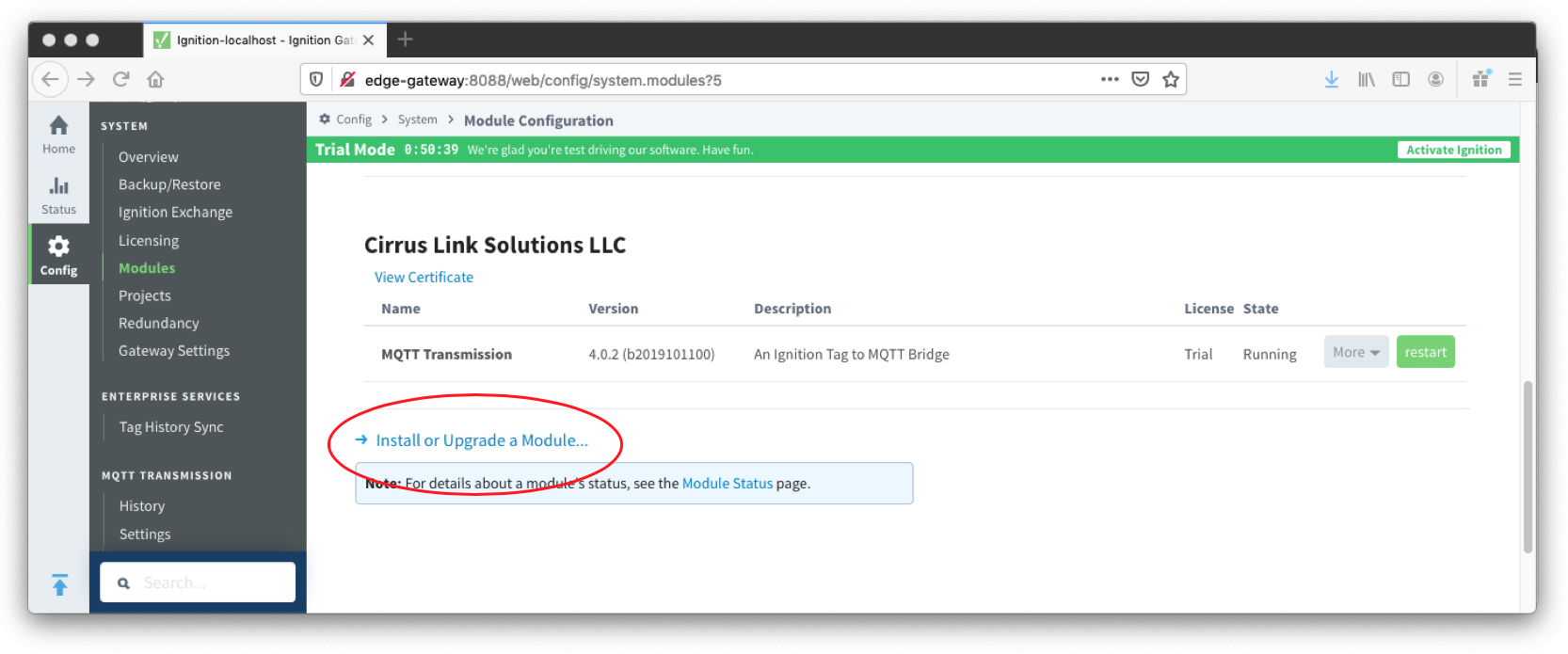

Log in to the Edge-Gateway using your new credentials (username/password) created during your installation. To the left of the side bar click on Configuration tab [ Home | Status | Config ] to configure your system. In the Side Bar, beneath the SYSTEM heading click on Modules to view or load Modules. Scroll to the bottom of the page and click on the "Install or Upgrade a Module..." text. When prompted, select the MQTT Transmission module from the file browser and install it. When complete, the Ignition Edge-Gateway Web UI module section should look similar to what is shown below.
Step 5b: Configure MQTT Transmission on Ignition Edge MQTT

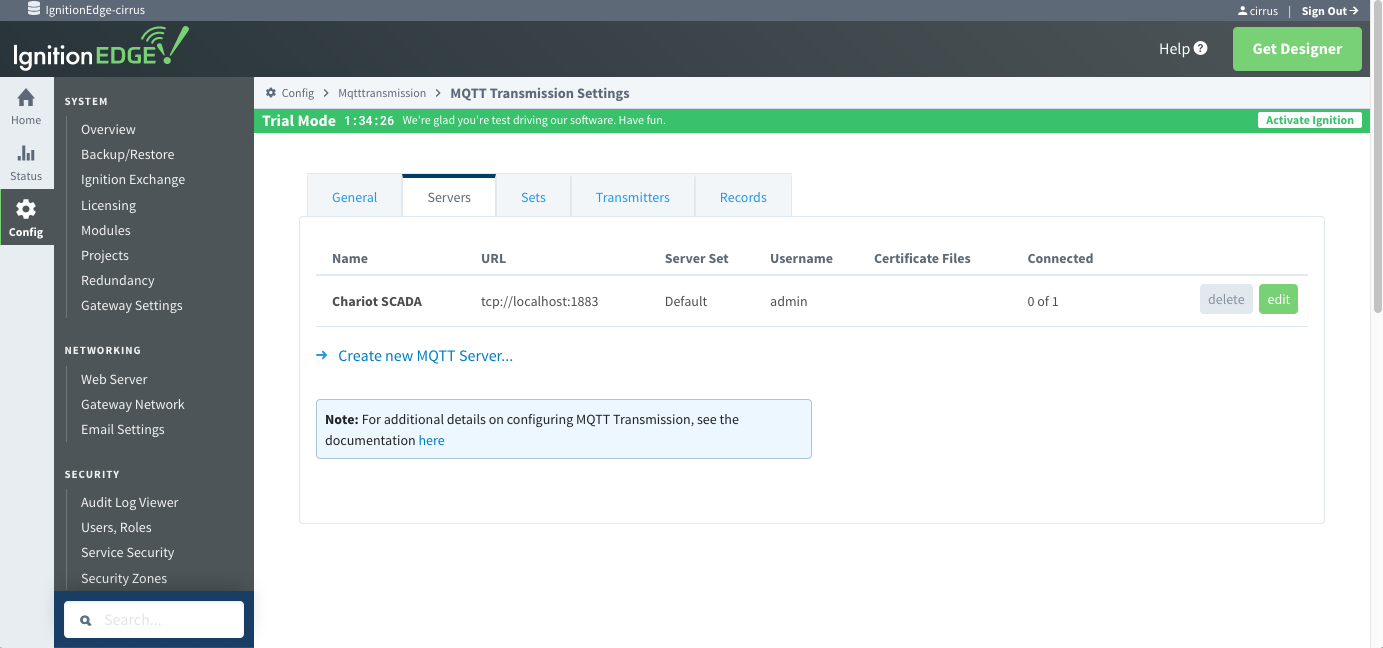

MQTT Transmission needs to be modified to point to the MQTT Server (MQTT Distributor) in order to get data into MQTT Engine. To do so, browse to Ignition Edge MQTT with a web browser. In the Side Bar, beneath the SYSTEM heading towards the bottom underneath MQTT TRANSMISSION click Settings to view or modify. The default view is of the General status. Make certain this is set to 'Enabled' when finished with the configuration. When complete, the Ignition Edge-Gateway Web UI module section should look similar to what is shown below. Then click 'Configure' at the top, log in, and select MQTT Transmission 'Settings' on the left panel near the bottom, then select 'Servers' tab. Configure the URL to match your environment. Finally, click the 'edit' button to the right of the 'Chariot SCADA' definition as shown below.

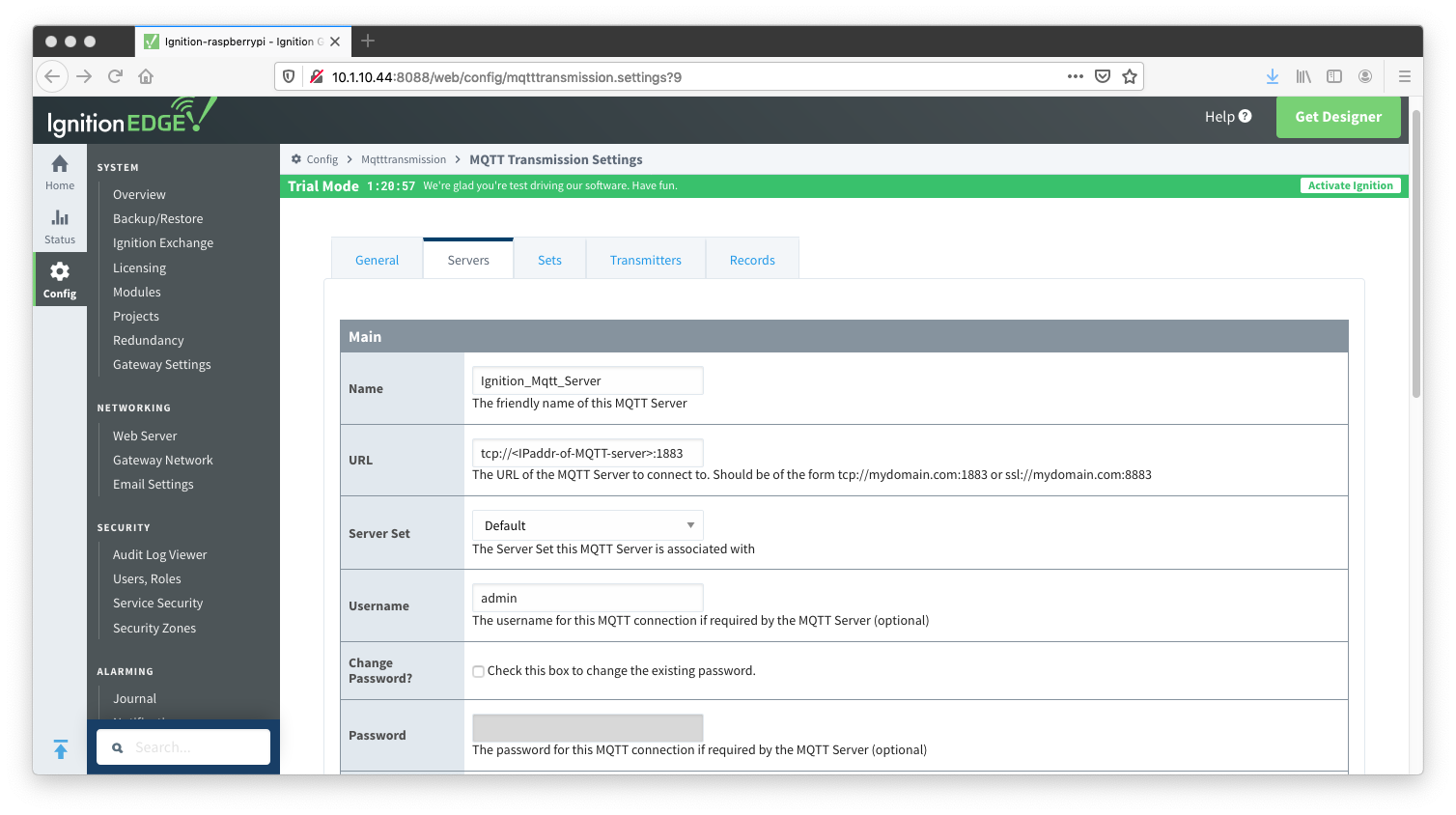

Edit Configuration pointing to your MQTT (Distributor) Server.......

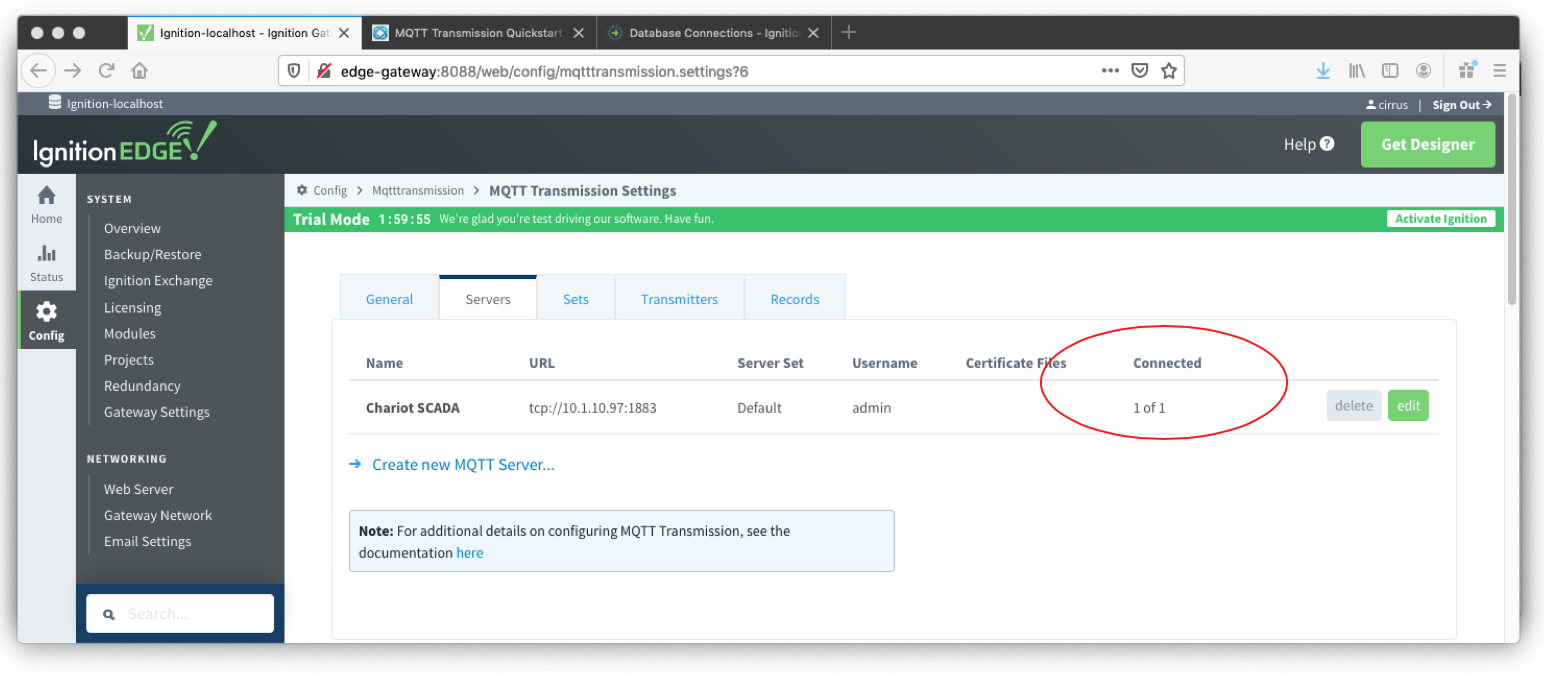

and modify the URL to point to the Ignition Distributor gateway. Example: If your Gateway IP is 10.1.10.97 then set the URL to tcp://10.1.10.97:1883 and save your settings. Confirm your connectivity from Edge to Gateway (below are two possible examples):

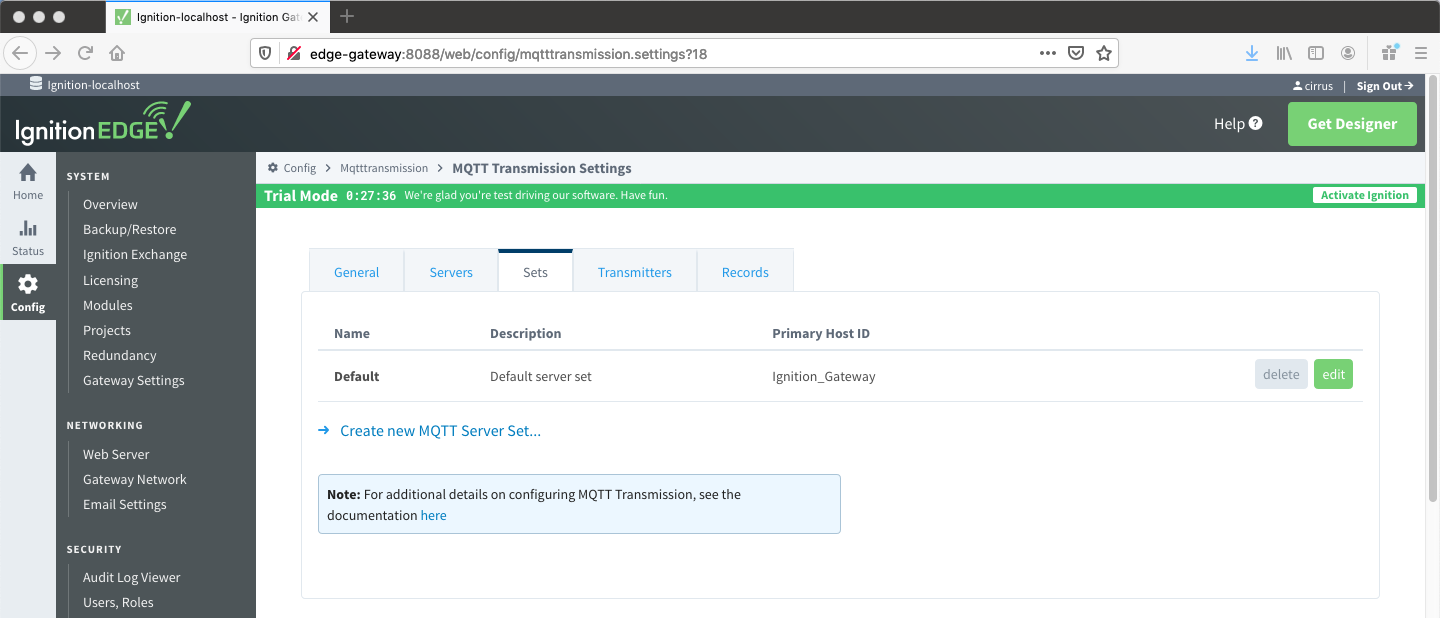

Now select 'Sets' at the top and click the 'edit' button next to the 'Default' Server Set as shown below. (Note that Primary Host ID is modified here in the example.)

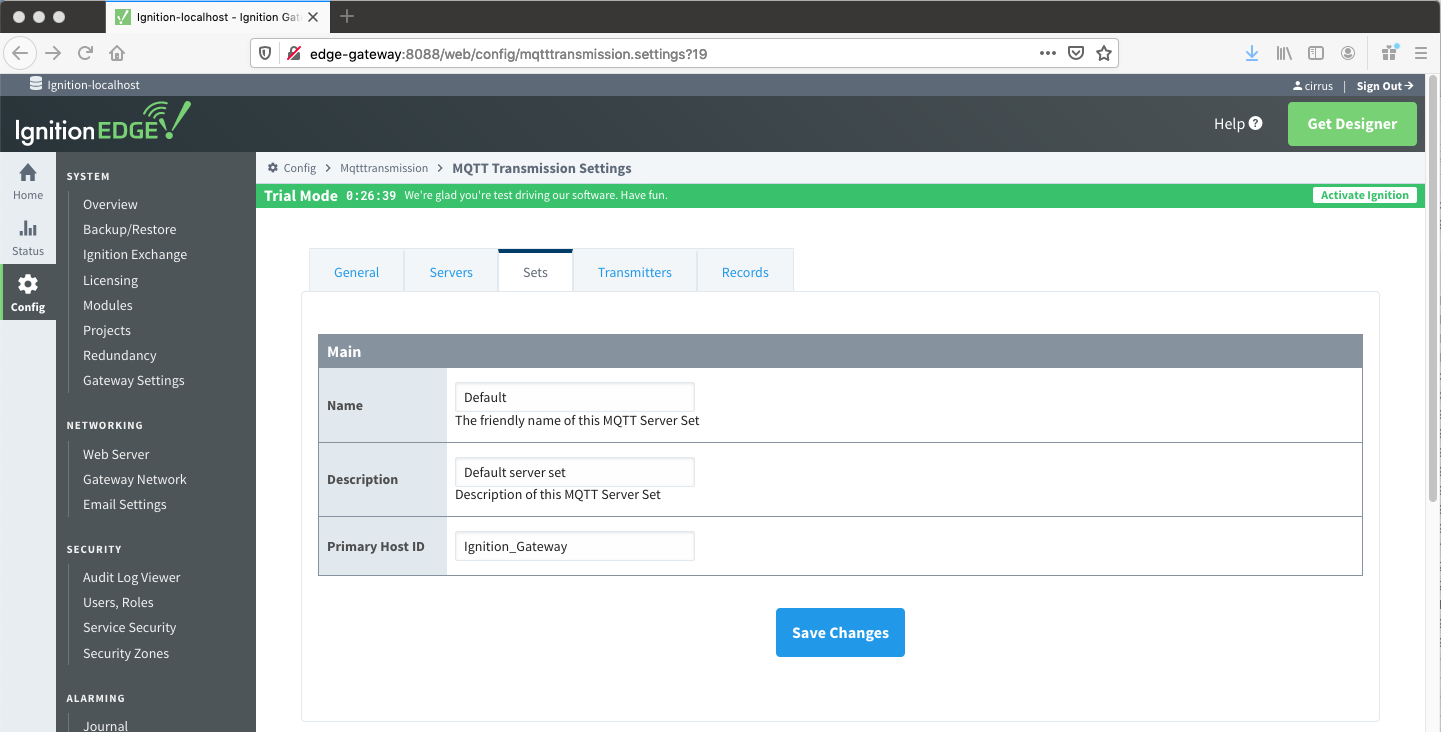

And as mentioned above if you are using the more robust method of specifying the host be sure to match Primary Host ID (eg. Ignition_Gateway) in Edge and Central Gateway settings. Edit the 'Default' Sets to enter and update the Primary Host ID.
Step 6: Launch Designer and Edit default Edge Tags

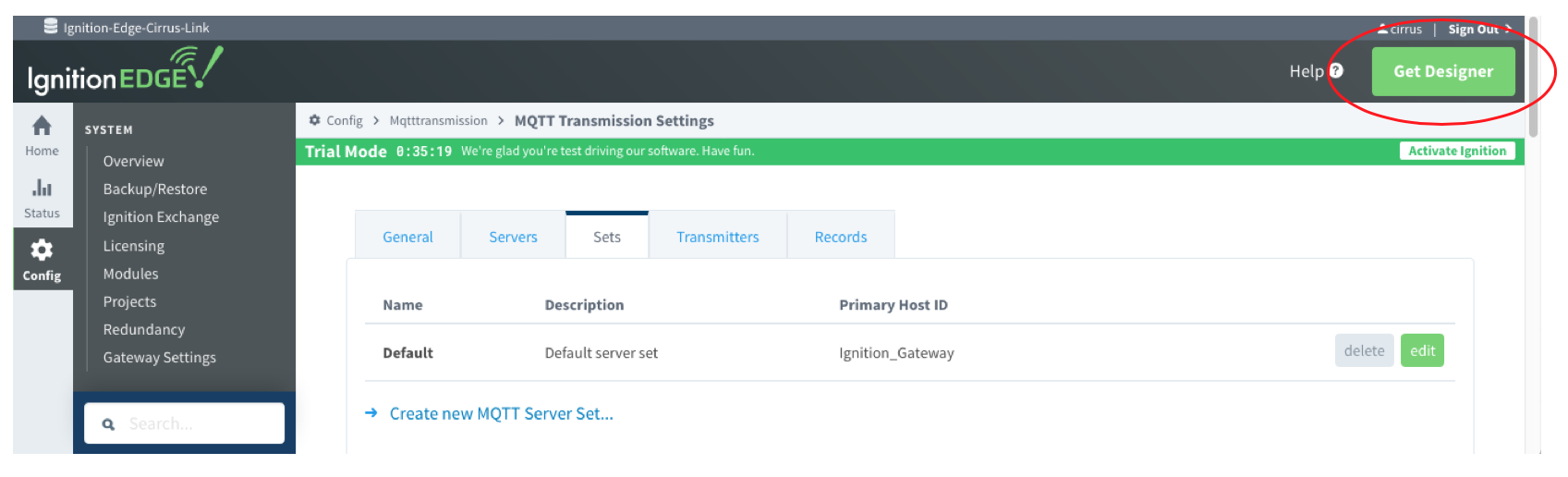

At this point we must download and launch the newest Ignition Designer tool to create or edit the default Tag(s) to send to MQTT Engine using the MQTT protocol. Get Designer from Ignition Edge web portal as shown below. Start and point the Designer tool at the same IP address, username and password as created on your Edge-Gateway to create your project.
Ignition Designer view of Edge 'Tag Browser' pane (expanded) shown below. Note the "All Providers/edge/Edge 'MQTT Tags' " folder. This is where we will edit or add some specific folders and tags or change the values to work with the 'Default Transmitter' of MQTT Transmission. Making changes on the Edge side will result in new values displayed at the Central Gateway as viewed with Ignition Designer. Launch Designer and create two sessions, one to view into the Edge and modify Tags, the other to see your Central Gateway and view those changes, confirming the correct configuration settings from the tutorial examples above.

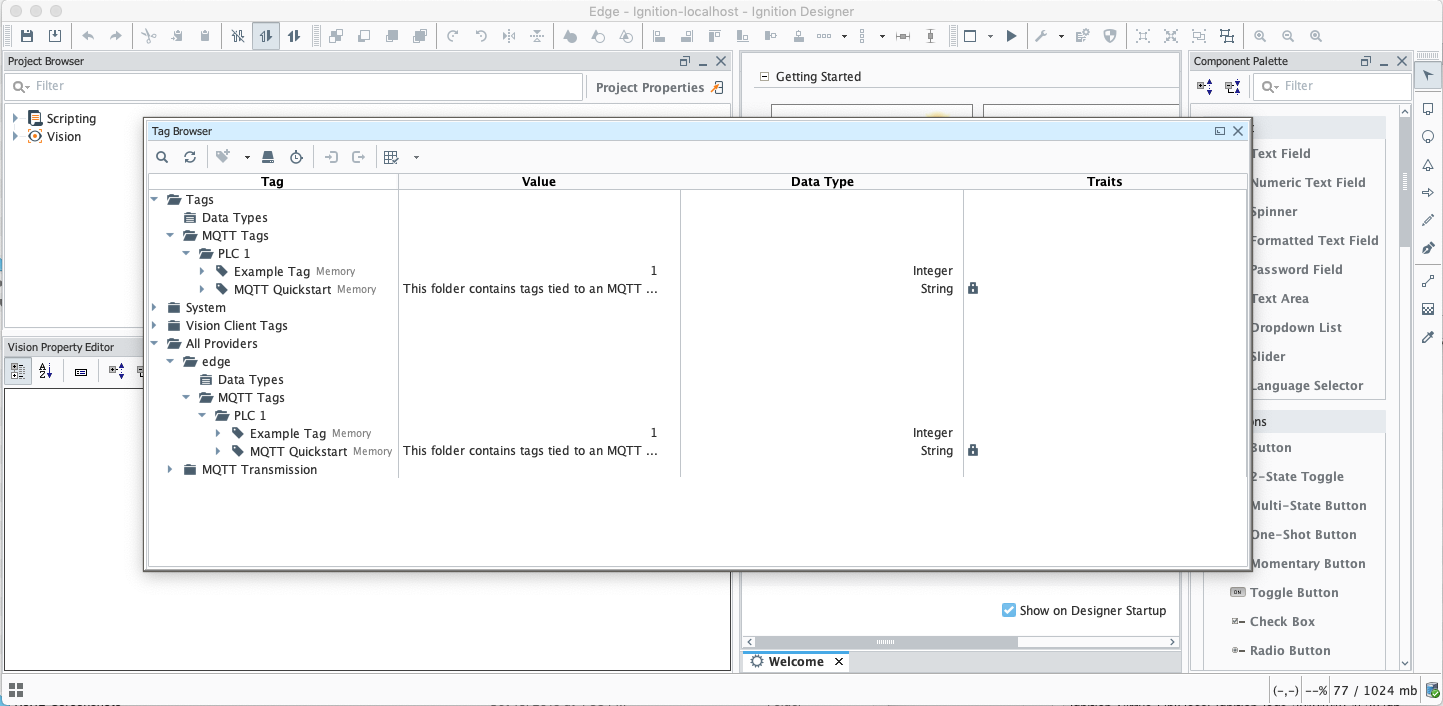

Ignition Designer's view into your Edge-Gateway (default values, Tag Browser expanded):

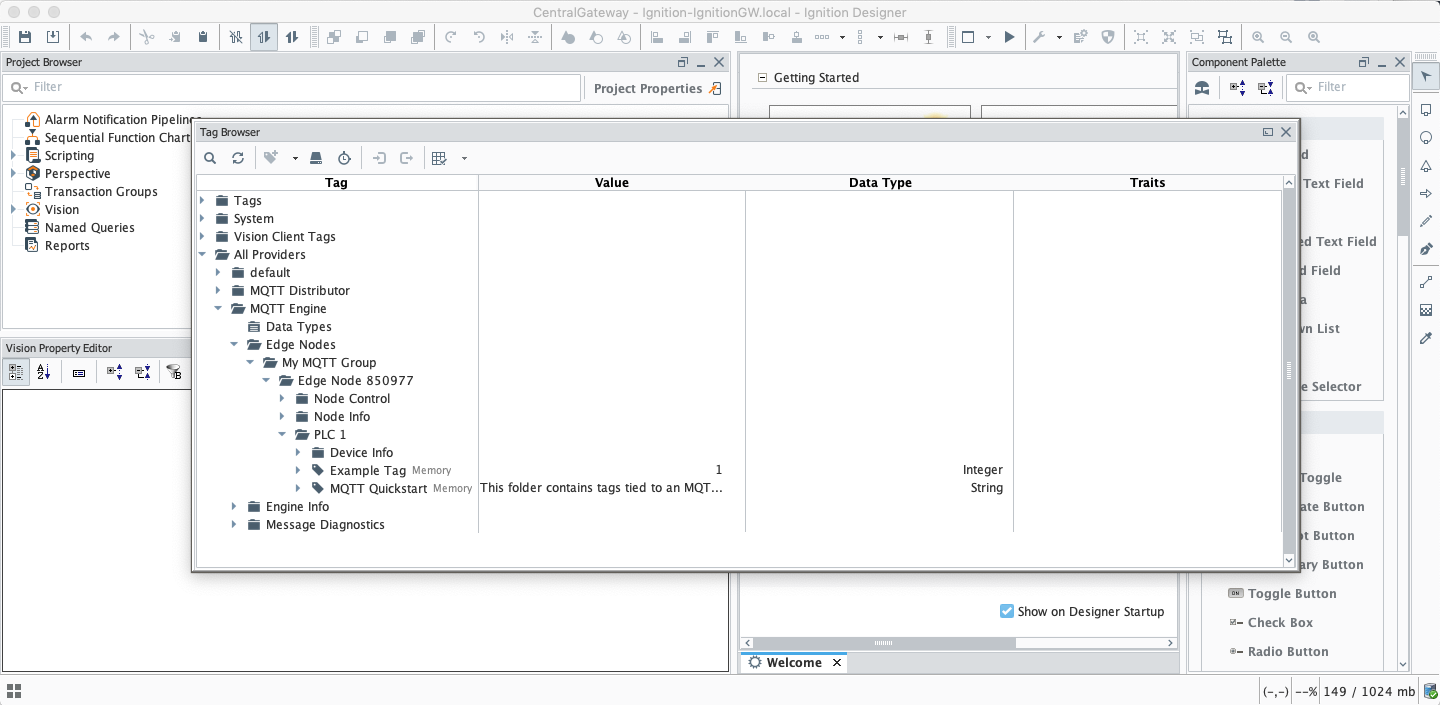

Ignition Designer's view into your Central-Gateway (Tag Browser expanded):
To see values change at the Edge-Gateway and eventually have them show up at Ignition Gateway you will need to double click on the default '1' value. The Ignition Designer tool is not by default in Read&Write mode so your first attempt to write a new value to the Example Tag will ask you to Cancel | Enable Read/Write Mode | Write Once. Select Write Once or Read/Write to allow Tag value changes.

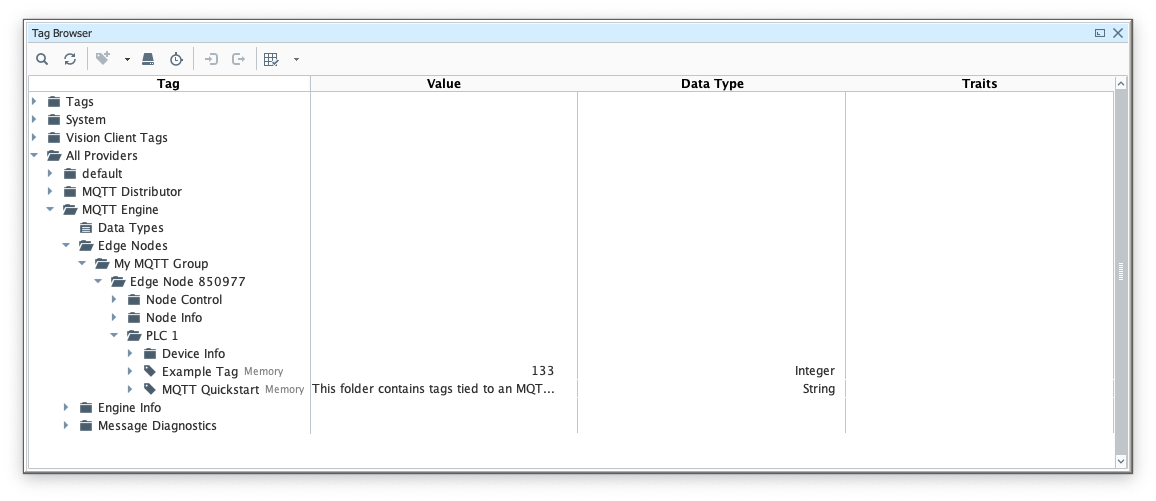

Central-Gateway Tags now update:
Ignition Designer Tag Browser views (below) of both Edge and Ignition Gateway showing the Tag Paths from both systems viewpoints. These Designer Tag Browser's are shown overlaying the web-browser view of the Edge Transmitter configuration page.
At this point you have a fully functional system that can be expanded or modified as required. Below are some additional activities you may want to try on your own.
- TLS enable the MQTT Distributor module and disable port 1883
- Note production MQTT Infrastructures should never run on the open Internet without using TLS enabled MQTT connections!
- Modify the MQTT Transmission default transmitter tag tree to add additional tags and get them to show up in the Central Ignition Gateway
- [ Show Link here to the Transmitter and Tag creation page ]
- Disable MQTT Transmission in Ignition Edge MQTT to see the tags go stale in MQTT Engine
- Set up store and forward in MQTT Transmission to show data being saved in Ignition Edge MQTT when the connection goes down
- Load and Configure a Database at the Central Gateway (launch Gateway webpage) then edit and associate Tag History using Ignition Designer
- Use a Custom Transmitter rather than the Default Transmitter to provide more flexibility on the MQTT Transmission side in terms of tag tree/arrangement
- [ Show Link here to the Transmitter and Tag creation page ]
- Add a second or more Ignition Edge MQTT instances pointed at the same MQTT Distributor instance that was set up in this tutorial
