Ignition User Defined Types (UDTs) are a powerful tool for consistently modelling pieces of equipment that are replicated throughout a system. For example a pump may have multiple variables such as pressure, temperature and flow, and by creating a UDT definition for that pump we can then replicate every instance of that pump in the system.
A UDT definition also flows directly through our Cloud Injector Modules allowing for dynamic system modelling within your Bigdata platform.
In this tutorial we will explain how the data in a UDT is represented when using MQTT Transmission and MQTT Engine along with best practices for managing UDT definitions.
Open three separate Designer sessions and connect to each of the three instances of Ignition:

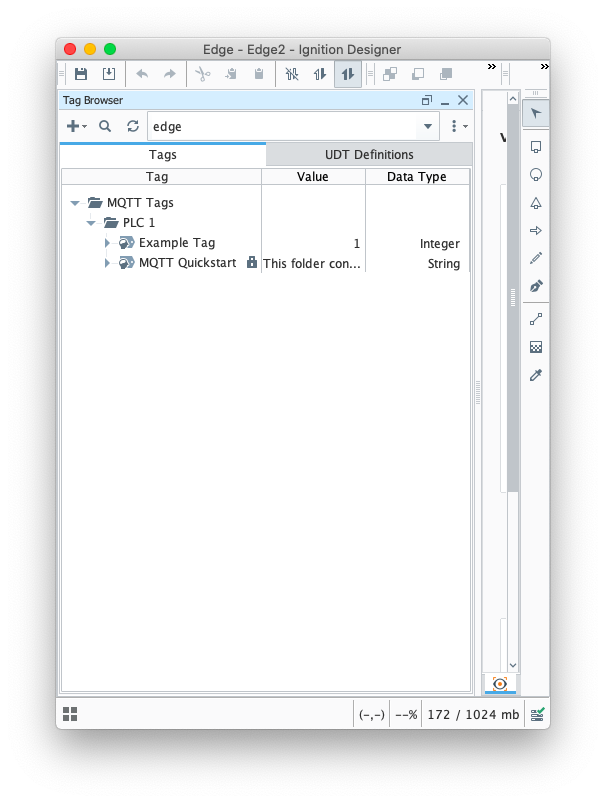

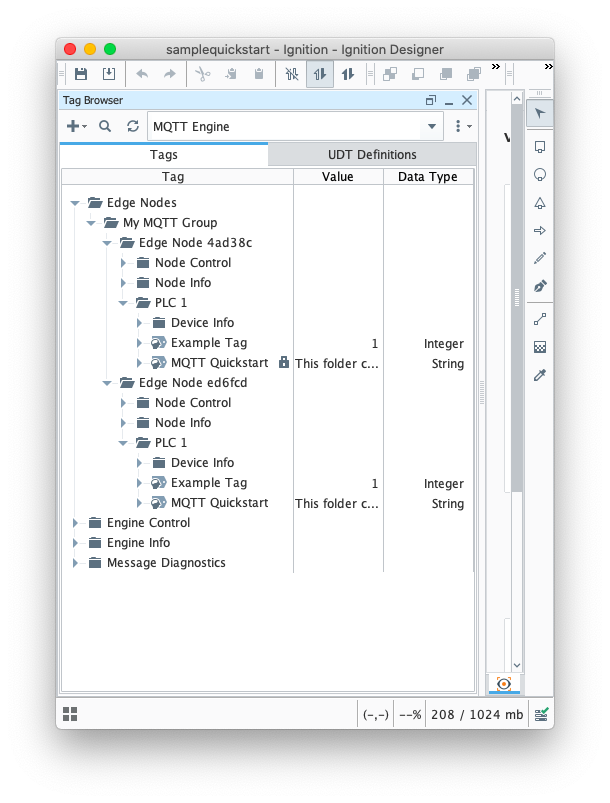

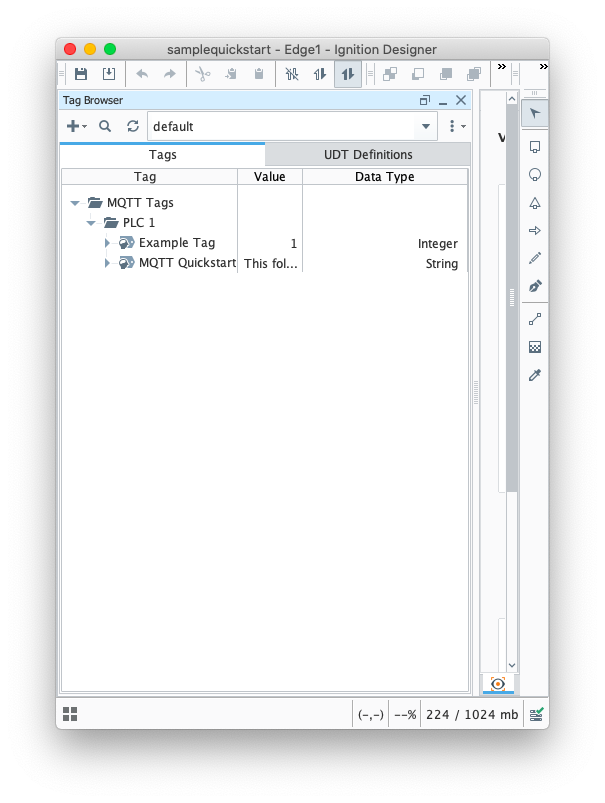

In the Tag browser, set the Column selection to include Value and Data Type. Your designer views will look similar to the views below:
From the Designer pointing to your Edge1 instance create a new UDT with the following properties:
Add a Memory Tag member to the Pump UDT with the following properties:
Add a second Memory Tag to the Pump UDT with the following properties:
Under your device PLC1, create an instance of the UDT "Pump" with the following properties:

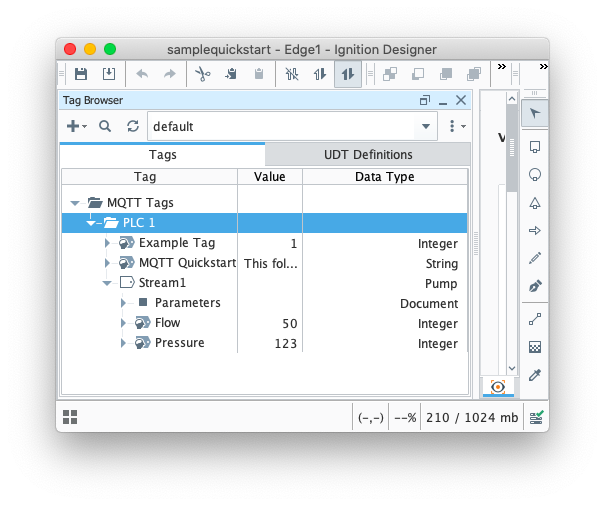

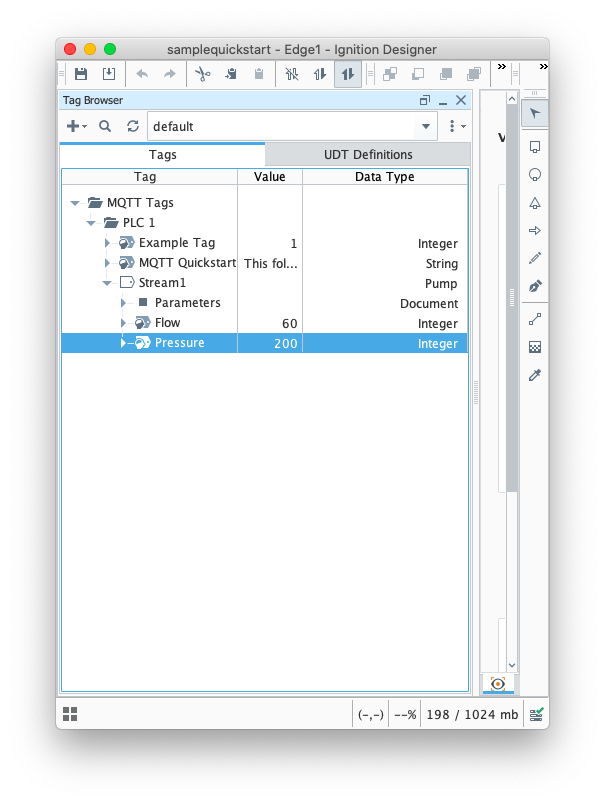

Your designer view connected to Edge1 will now look like this:
On the Edge1 Ignition instance UI, navigate to the MQTT Transmission Transmitters settings by selecting Config > MQTT TRANSMISSION > Settings and selecting the Transmitters tab.

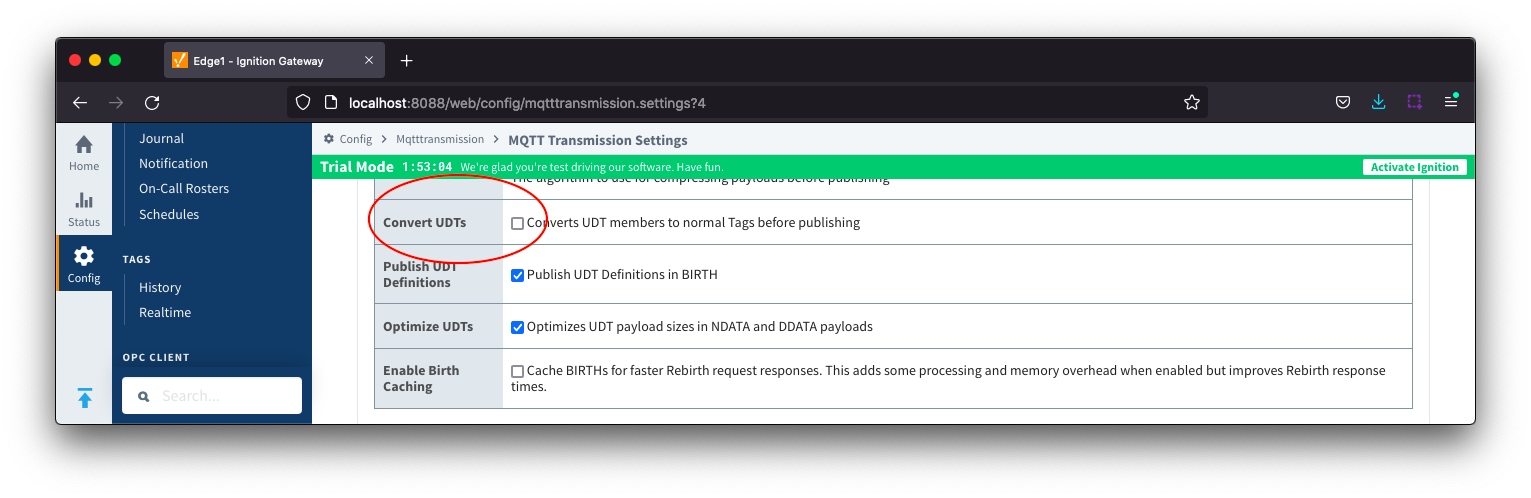

Edit the Example Transmitter and ensure that the Convert UDTs parameter is deselected. This will enable the UDT Definition to be included as part of the BIRTH and disable the UDT member tags from being converted to normal tags before publishing.

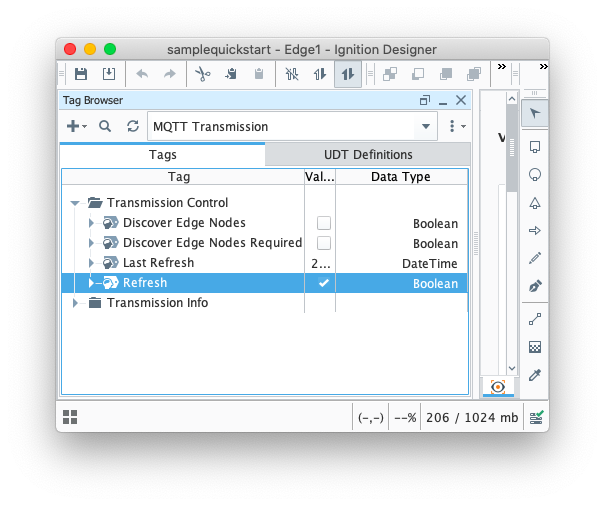

From the Designer pointing to your Edge1 instance force a refresh by switching the provider to MQTT Transmission and selecting the Refresh click box under Transmission Control. This Boolean control will automatically deselect once the BIRTH has been published.

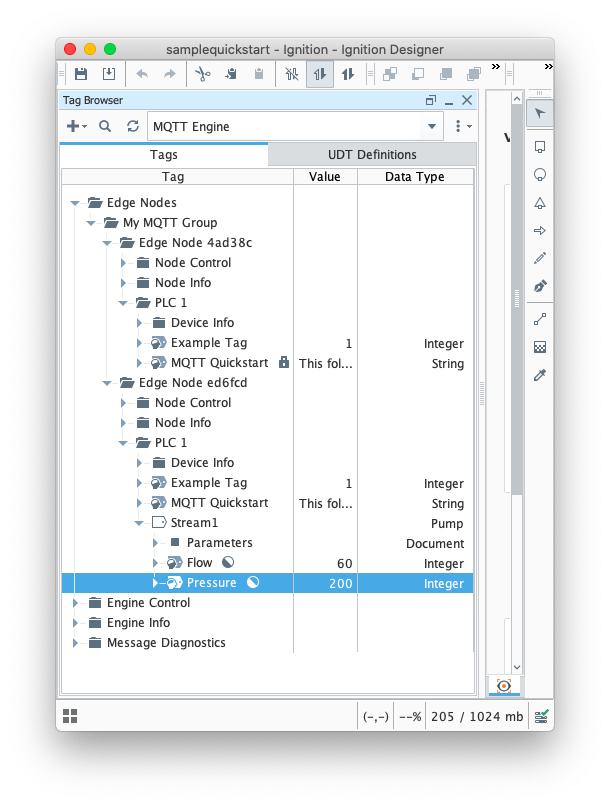

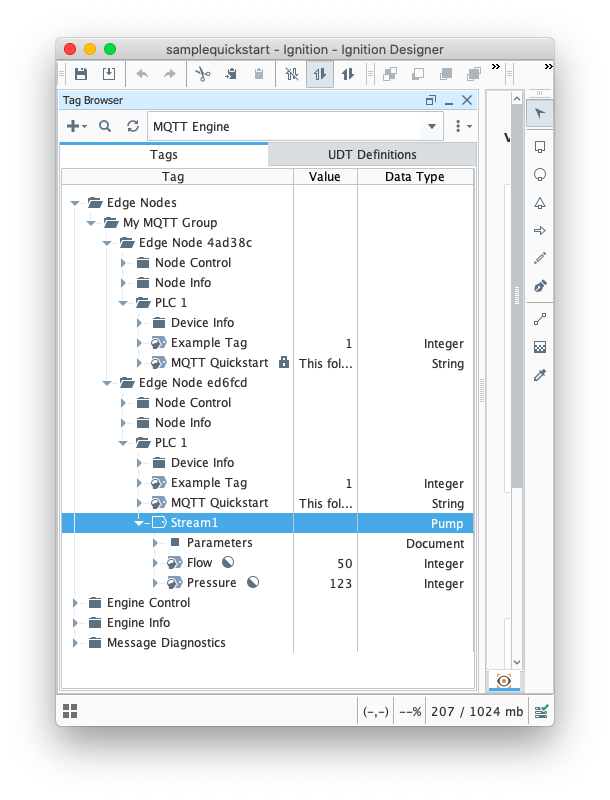

From the Designer pointing to your MQTT Engine instance, you will now see the tag Stream1 with a data type of Pump published from the Edge1 device:

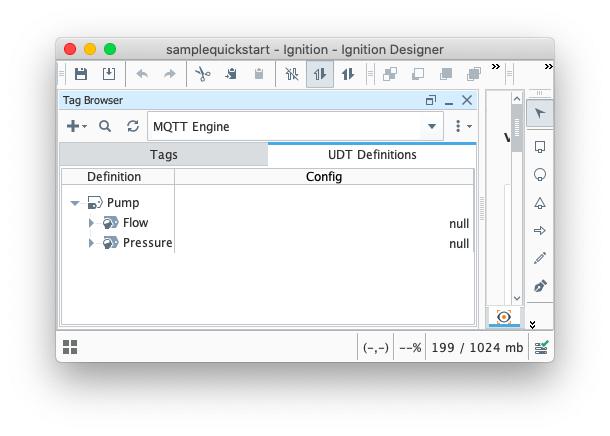

and can see the Pump UDT Definition in the UDT Definitions tab:

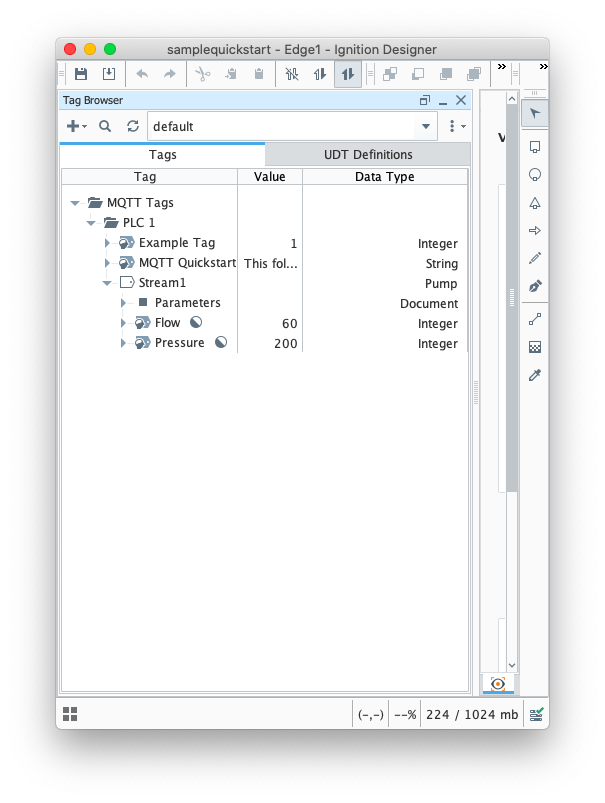

From the Designer connected to the Edge1 instance, make changes to the Stream1 tag Flow and Pressure member tags and see the data published and displayed on the MQTT engine instance of Designer.
Now we have our UDT defined we can replicate this across our other edge devices.
Following the instructions Ignition Importing and Exporting Tags, select the UDT Definition to export from the Edge1 device and import to the Edge2 device
Step 2 - Create a new instance of the Pump UDT on Edge2 and publish
Following the instructions above in Step 2a and Step 3 from Creating and Publishing a UDT create a new instance of the Pump UDT on the Edge2 device and publish.
The name of the instance does not have to be different as the tag path of group/edge/device will fully define the data.

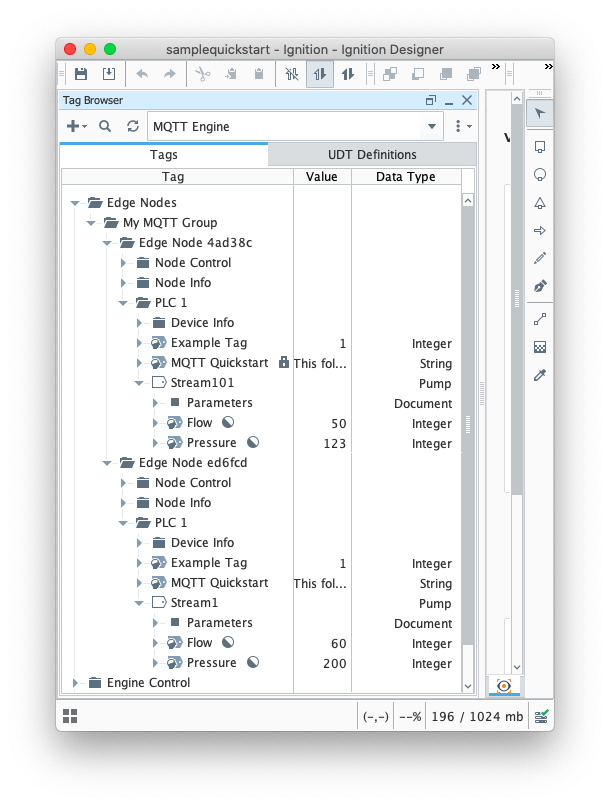

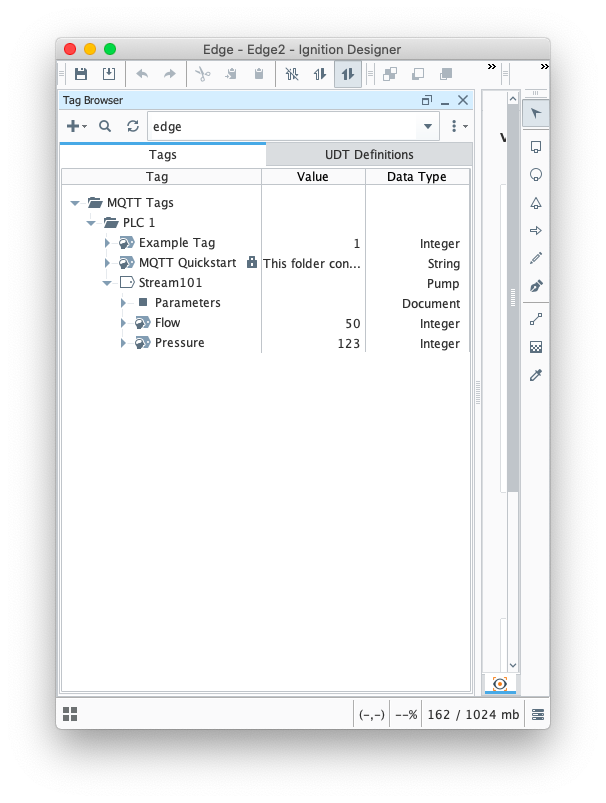

Your Designer views will look similar to the ones below:
You cannot have UDTs definitions with the same name and different tag members within the system. The MQTT Engine will ignore any new UDT definitions received that share the same name as the first recorded UDT definition.
From MQTT Engine release 4.0.16 onward, UDT collision detection is logged.
From MQTT Transmission release 4.0.26 onward, BIRTH messages have been optimised to omit unused UDT definitions in the payload
This means that if you are updating a UDT, you cannot simply add or remove a tag member from the UDT and force the refresh to publish a birth certificate as the MQTT Engine will ignore the revised definition.
The recommended method is to create a new UDT definition on the Edge device that inherits from the existing UDT definition. This is done by setting the property Parent Data Type of the new UDT definition to the existing UDT definition. This will allow you to manage versioning for your UDT definitions and prevent published data being ignored by MQTT engine.

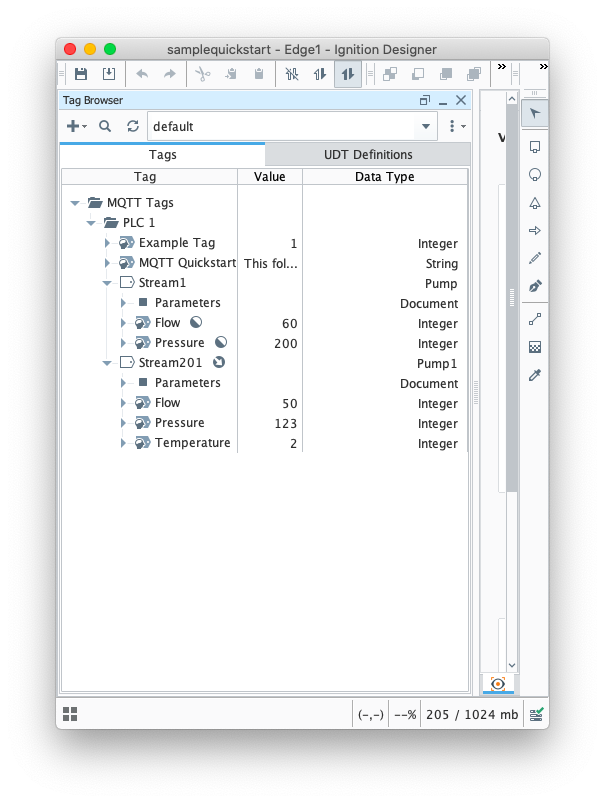

In the example below, we have created a new UDT named Pump1 with the inherited tags from Pump and added a new memory tag of Temperature.

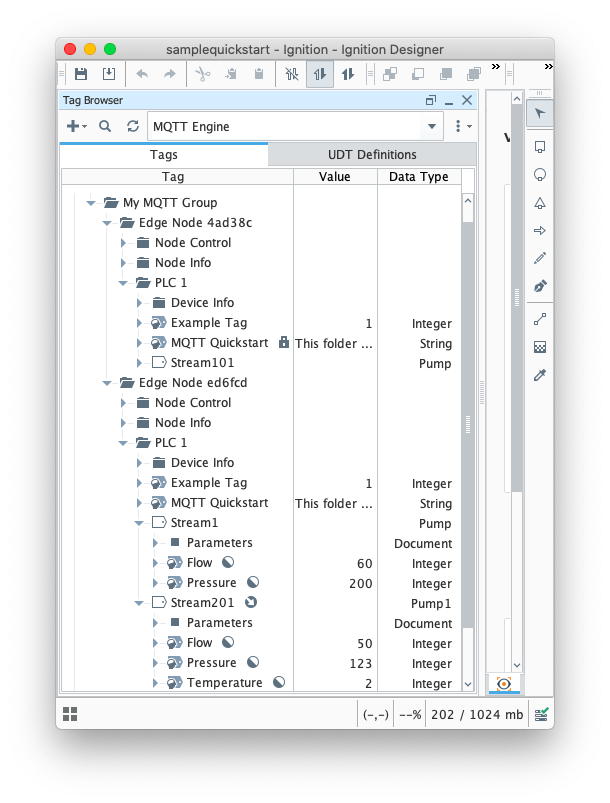

Once the new definition is created, you can create an instance on the edge device and force the refresh. The new UDT definition will be recorded by MQTT engine and the data processed correctly without impacting the data published from other edge devices. The system can run like this indefinitely with the updated definition imported into any other locations that need to use that new definition.
Changes made at an edge device to UDT definition member tags are not propagated through the system. You will see that any tag instances of that UDT at the edge device will reflect the changes, but the recorded definition for the UDT at engine will not change nor will tag instances for other edge devices using that definition.
If you make any change to an existing UDT definition you will need to also:
UDT Collision Detection
UDT collision detection is now available in MQTT Engine module 4.0.16 and newer and uses the MD5 sum of the UDT to detect differences.

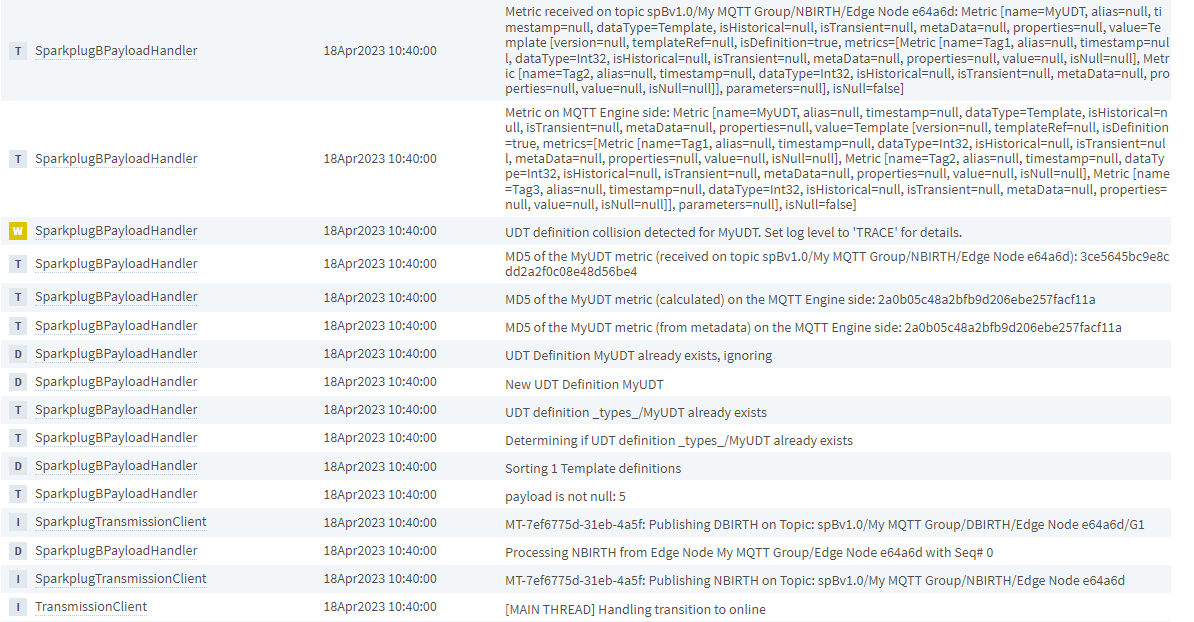

If a collision is detected, a warning will be logged and you can see the detail by setting the com.cirruslink.mqtt.engine.gateway.sparkplug.SparkplugBPayloadHandler to TRACE.
This detail will show the UDT definition at MQTT Engine and also the UDT definition published in the NBIRTH message. The offending edge node can be identified from the NBIRTH message.
Additional Activities
