Overview

There are four main types of data that the EFM Emerson ROC driver is capable of getting from an Emerson ROC device.  These are:

• TLP data
• Alarm Data
• Event Data
• History Data

TLPs are polled at a specified interval based on a poll rate and then made available via the OPC-UA interface.  Alarms, events, and history are made available to MQTT Transmission to be published as immutable record objects to an MQTT server.  Typically these would be received on a central Ignition gateway with the MQTT Engine and MQTT Recorder modules.  Combined those receive the MQTT Sparkplug messages and insert the records into a central DB and be made available to other third party systems or for later use in Ignition.

For the purposes of this document there are some definitions that are explained below.

• Global TLP Definitions
  • These are the global TLP definitions made available to the Ignition instance.  They are uploaded to the Ignition instance in the form of specificly formation CSV file.  These TLP definitions can then be referenced by a specific instance of a ROC device connection to restrict the TLP definitions to those that apply to that device.  For example, lets say you upload four Global TLP definitions.  Lets say these are ROC800.csv, FLOBOSS107.csv, UserProgram1.csv, and UserProgram2.csv.  With these global definitions there could be differing definitions for any specific T/P combination.  This is only allowed if the differing definitions are in different CSV files.  No one CSV file is allowed to have differing definitions of the same T/P combination.
• Device TLP Definitions
  • These are a subset of the global TLP definitions that apply to this specific device.  Continuing with the example from above let's say this is a ROC 800 and has User Program 1 installed.  We would select the ROC800.csv and UserProgram1.csv as the TLP definitions that apply to this specific ROC device.
• TLP Templates
  • TLP templates are groupings of TLPs that represent logical groupings of TLPs.  Generally TLP templates would be created to then can have instances of them created by specifying a poll group with a logical number or the 'L' parameter in a TLP.
• TLP Poll Groups
  • Poll groups use TLP templates in conjunction with a logical number to create a specific set of TLPs to be polled at a specified poll rate.

There are six basic steps to getting all of the data available in a ROC into Ignition

1. Define the global TLP definitions available for all ROC devices in this Ignition instance
2. Create the base device connection to the ROC
3. Specify the subset of TLP definitions that this specific ROC uses
4. Create TLP Template(s) which define groups of TLPs should be polled as a logical group
5. Create TLP Poll Group(s) which specify the logical parameters associated with a given TLP Template
6. Use Ignition designer to pull tags into a tag provider

Global TLP Definitions

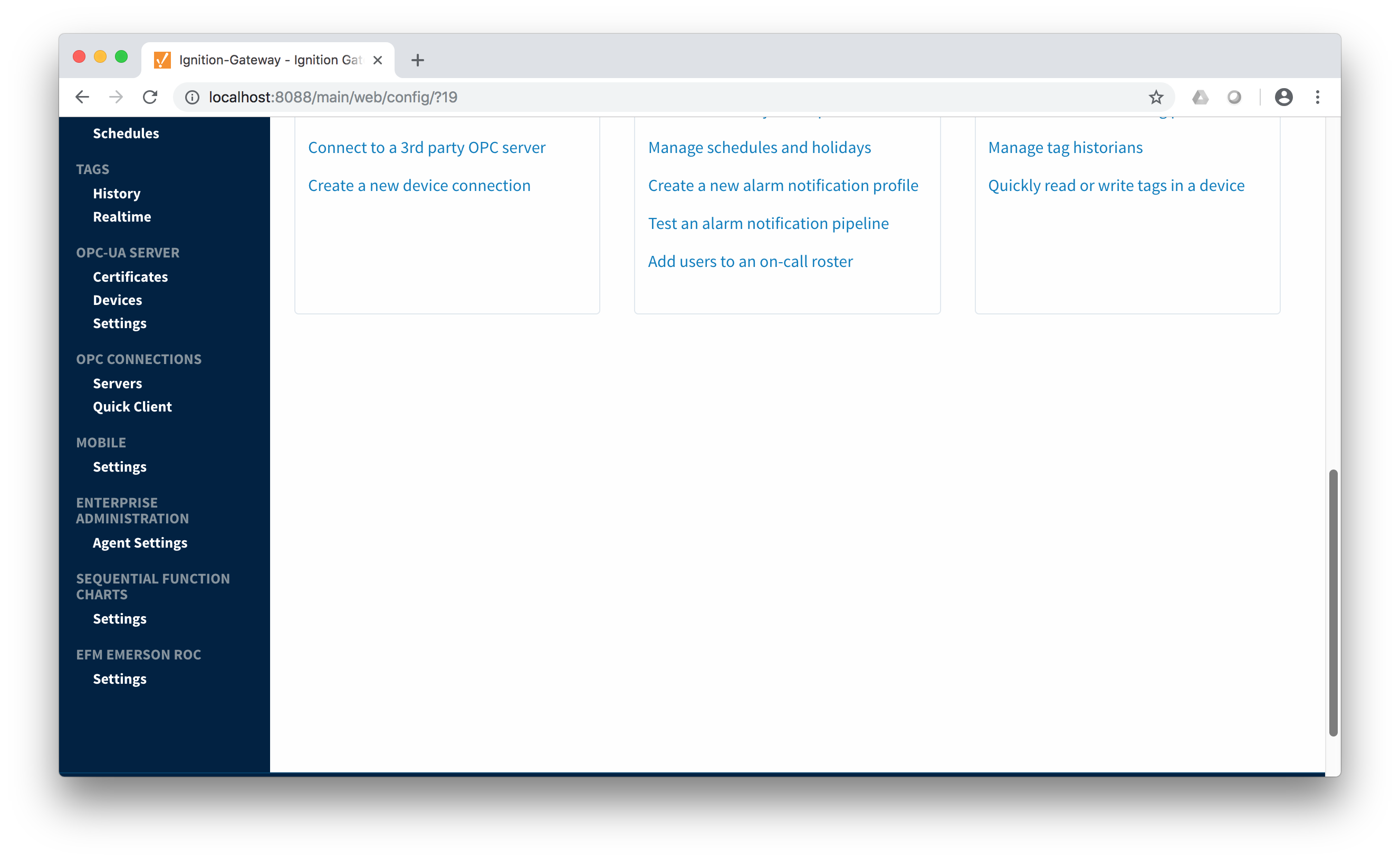

The EFM Emerson ROC driver module provides a configuration section to the Ignition Gateway.  These can be seen in the Configure section of the Ignition Gateway web UI on the left panel near the bottom.  Note this step is required before any EFM Emerson ROC device connections can be define.  Each Emerson ROC device connection will use a subset of these global TLP definitions to operate.

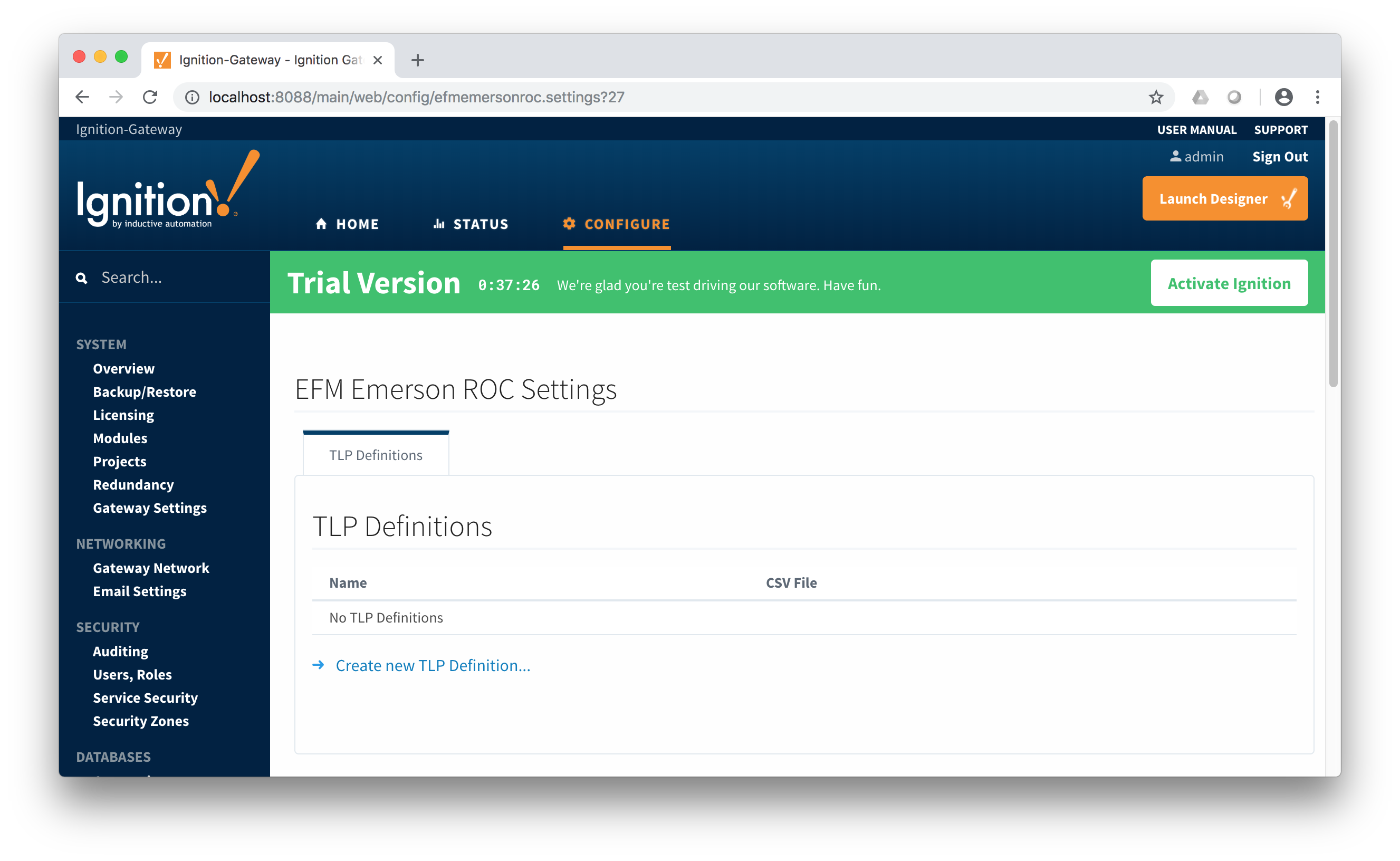

Once in the configuration screen you will see a link to create new global TLP definitions.  Click the link shown below to create a new one.

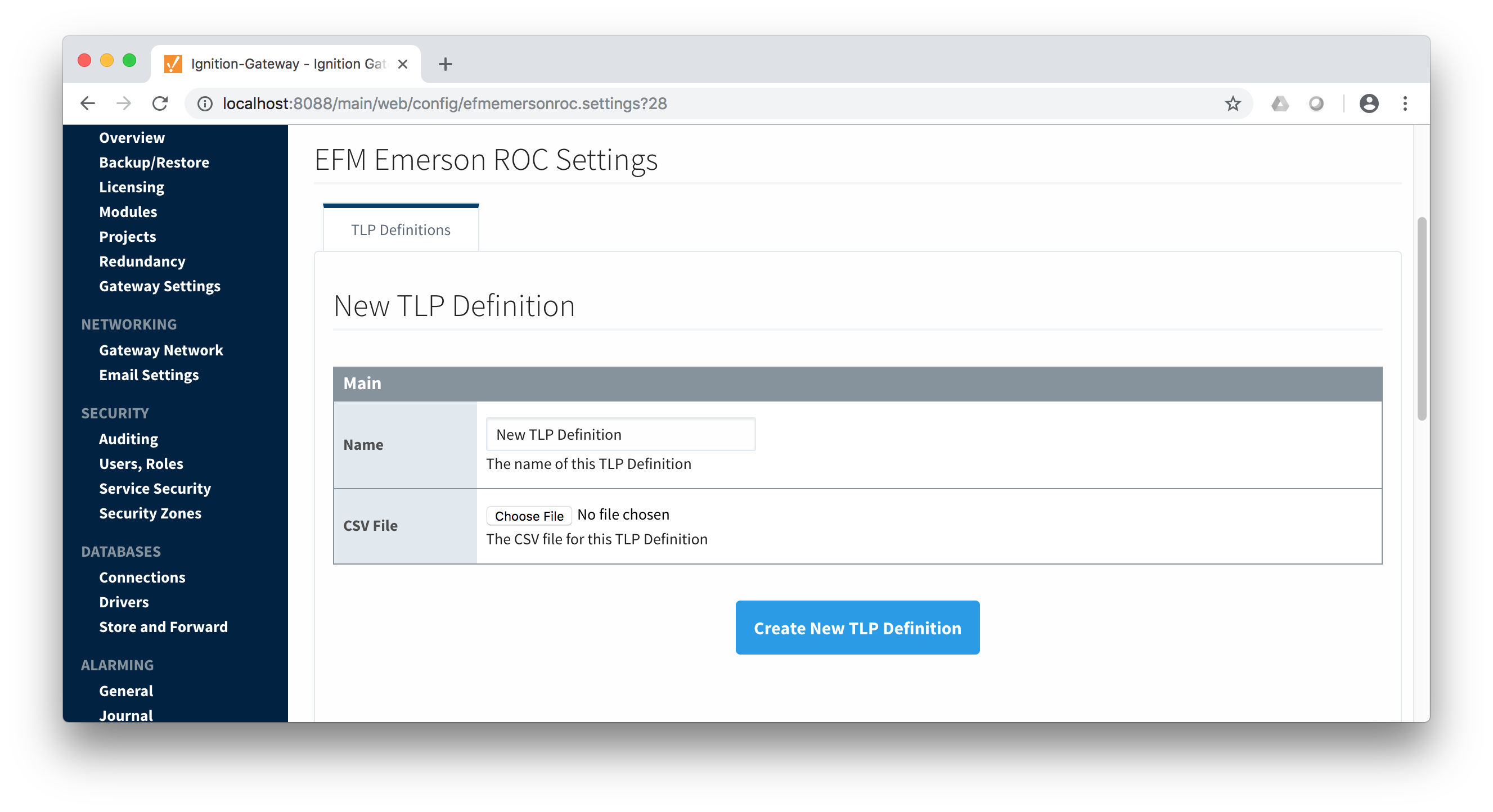

When creating a new global TLP definition only a name and a CSV file needs to be specified.  The name can be any unique name that describes the TLPs included in that CSV file.  They can be device specific TLPs or they can be TLPs associated with a specific user program.

The headers of the CSV file must be as follows:

• Point Type #
  • The 'T' parameter of a TLP - must be an integer
• Point Type Description
  • A long description of the 'T' parameter
• Point Type Abbreviation
  • The abbreviation of the 'T' parameter
• Parameter Number
  • The 'P' parameter of the TLP - must be an integer
• Parameter Name
  • The descriptive name of the TLP
• Parameter Description
  • The description of the TLP
• Parameter Abbreviation
  • This becomes the default tag name of the parameter in Ignition.  It can be changed in any TLP template where it is defined.
• Access
  • The access value for the TLP.  Must be either R/O or R/W
• DataType
  • The datatype of the TLP.  Must be one of the following:
    • BIN
      • Binary value
      • 1 byte
      • Ignition Type: Byte
    • AC
      • ASCII String Value
      • Variable number of bytes
      • Ignition Type: String
    • INT8
      • Signed 8-bit Value
      • 1 byte
      • Ignition Type: Short
    • INT16
      • Signed 16-bit Value
      • 2 bytes
      • Ignition Type: Short
    • INT32
      • Signed 32-bit Value
      • 4 bytes
      • Ignition Type: Integer
    • UINT8
      • Unsigned 8-bit Value
      • 1 byte
      • Ignition Type: Short
    • UINT16
      • Unsigned 16-bit Value
      • 2 bytes
      • Ignition Type: Integer
    • UINT32
      • Unsigned 32-bit Value
      • 4 bytes
      • Ignition Type: Long
    • FL
      • 4-byte Floating-Point Value
      • 4 bytes
      • Ignition Type: Float
    • FLP
      • Same as FL
      • 4-byte Floating-Point Value
      • 4 bytes
      • Ignition Type: Float
    • DBL
      • 8-byte Floating-Point Value
      • 8 bytes
      • Ignition Type: Double
    • TIME
      • 4 byte ROC representation of time
    • TLP
      • 3 byte ROC representation of a TLP
    • HOURMINUTE
      • 2 byte ROC representation of hour and minute
    • FLOAT
      • Same as FL
      • 4-byte Floating-Point Value
      • 4 bytes
      • Ignition Type: Float
    • DOUBLE
      • Same as DBL
      • 8-byte Floating-Point Value
      • 8 bytes
      • Ignition Type: Double
    • DT6
      • 6 byte ROC representation of time
• Length
  • The length of the the value.  For example INT8 is 1, INT16 is 2, for an AC type it is variable and dependent on the specific TLP.

Below is an example of a properly formatted global TLP CSV file:

Point Type #,Point Type Description,Point Type Abbreviation,Parameter Number,Parameter Name,Parameter Description,Parameter Abbreviation,Access,DataType,Length
1,Discrete Inputs,DIN,0,Point Tag ID,,TAG,R/W,AC,10
1,Discrete Inputs,DIN,1,Filter,,FILTER,R/W,UINT8,1
1,Discrete Inputs,DIN,2,Status,,STATUS,R/W,UINT8,1
1,Discrete Inputs,DIN,3,Mode,,MODE,R/W,BIN,1
1,Discrete Inputs,DIN,4,Alarm Code,,ALARM,R/O,BIN,1
1,Discrete Inputs,DIN,5,Accumulated Value,,ACCUM,R/W,UINT32,4
1,Discrete Inputs,DIN,6,On Counter,,ONCTR,R/W,UINT32,4
1,Discrete Inputs,DIN,7,Off Counter,,OFFCTR,R/W,UINT32,4
1,Discrete Inputs,DIN,8,0% Pulse Width,,MINCNT,R/W,INT16,2
1,Discrete Inputs,DIN,9,100% Pulse Width,,MAXCNT,R/W,INT16,2

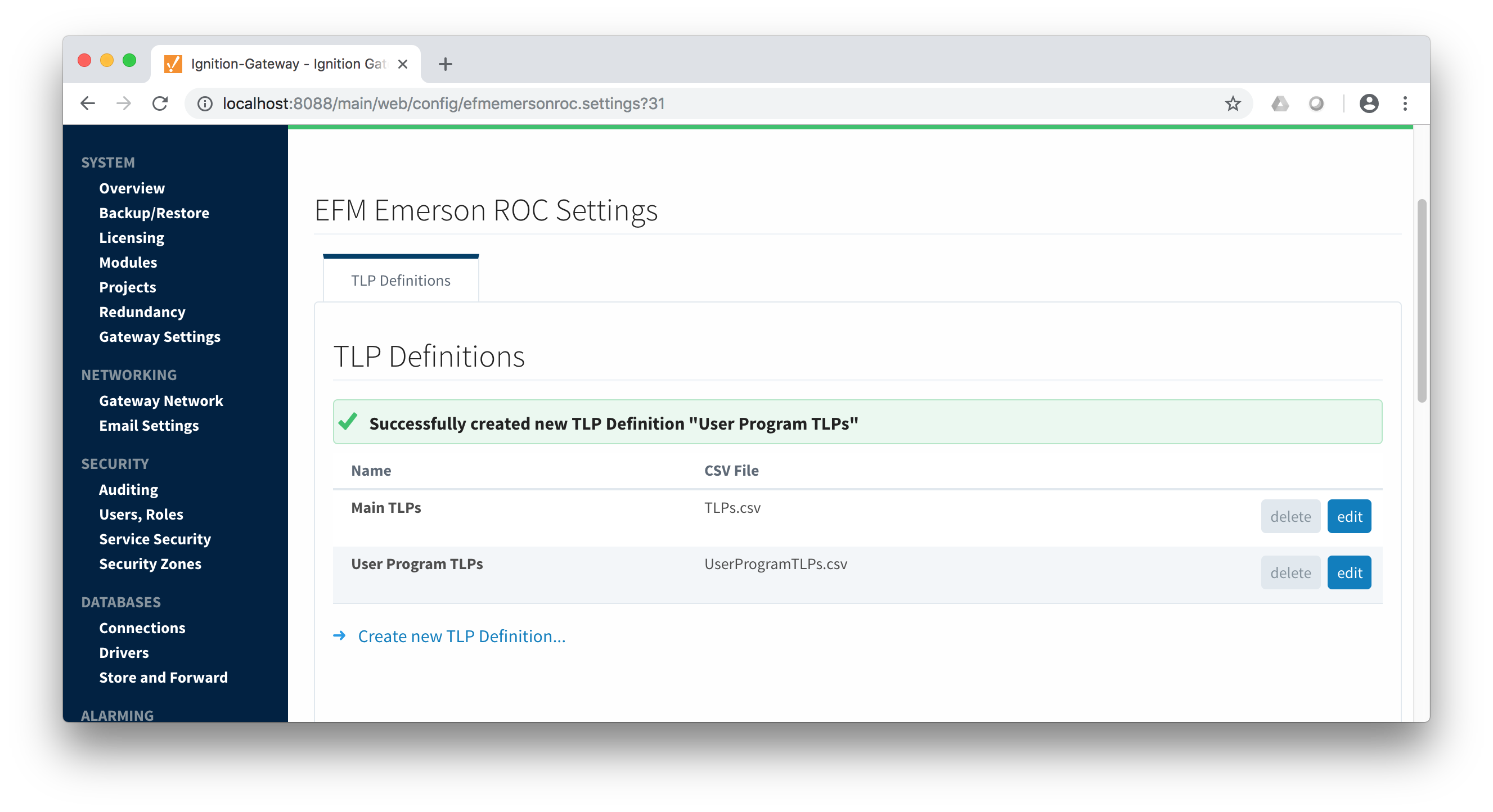

Once you have your properly formatted global TLP definitions they can be uploaded.  Once complete, it will look similar to what is shown below.
