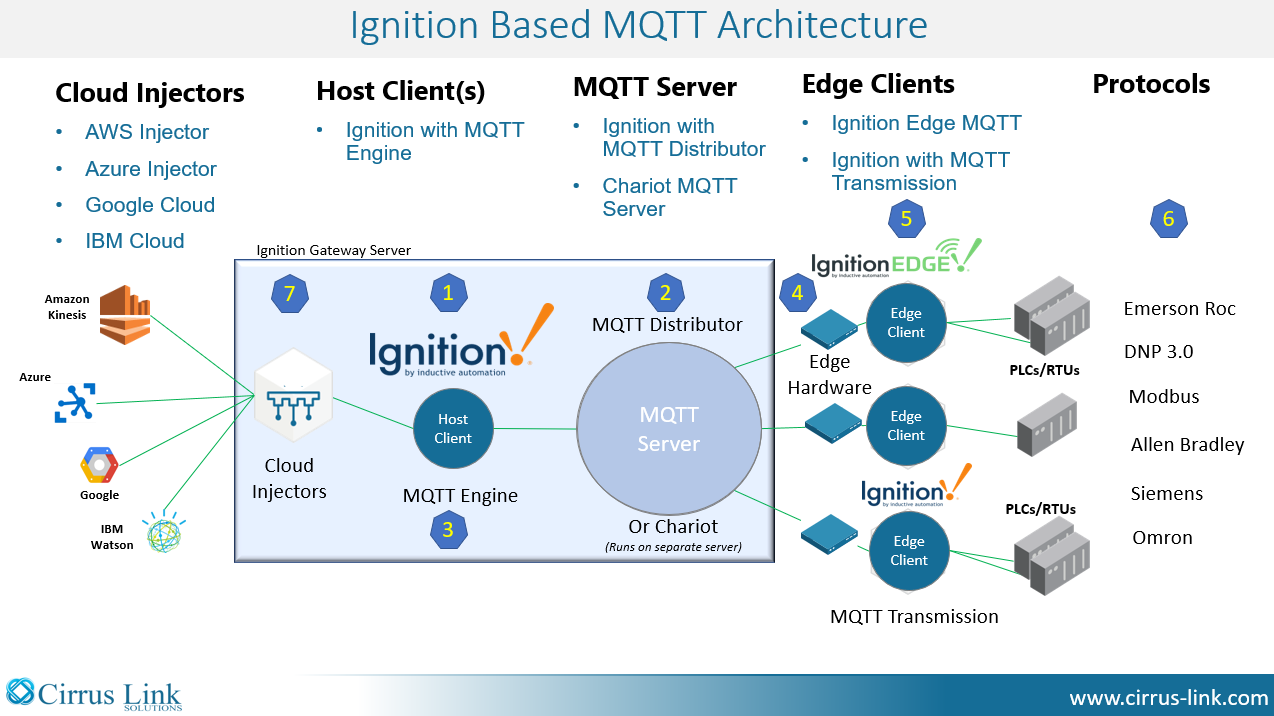

  1. Ignition Gateway platform
  2. MQTT Server – (either MQTT Distributor running as a module on the Ignition Gateway or standalone Chariot Server)
  3. Host Client – (MQTT Engine running as a module on the Ignition Gateway)
  4. Edge hardware – (select appropriate edge hardware platform)
  5. Edge Client – (Ignition Edge)
  6. Protocols – (gather OT data from existing field equipment RTU's / PLC's using native protocols)
  7. Cloud Injectors – (to transmit OT data to the cloud for big data analytics)

Interactive pdf version of this information,

View file
nameMQTT IIOT Recipe.pdf

Step 1. Installing Ignition Gateway
